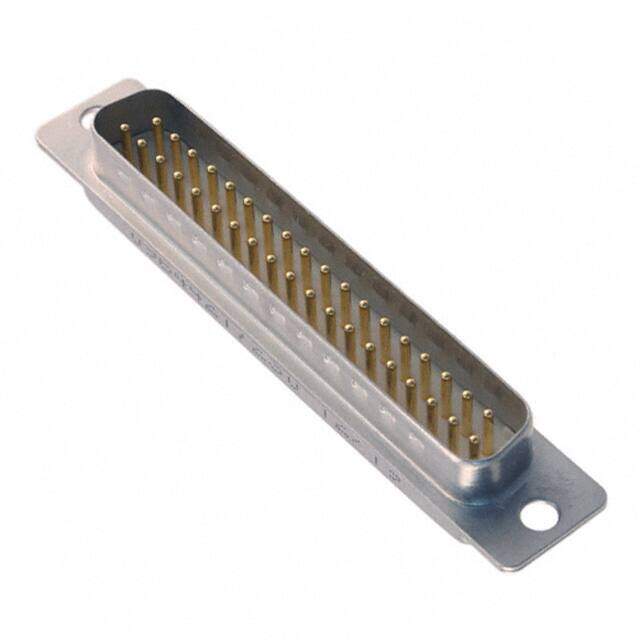

09644217230 image
Favorite
09644217230 image
Favorite

09644217230

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors 37P MALE SOLDER CUP THRU HOLE
PDF
/
Buying Options
Total Price: USD $27.43
Unit Price: USD $27.4296
≥1 USD $27.4296
≥10 USD $24.01696
≥100 USD $22.978912
≥500 USD $22.237776
≥1000 USD $21.496552
≥3000 USD $20.310506
Inventory: 62
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Dimensions

Length 69.3mm

Technical

Shell Size, Connector Layout 4 DC C
Contact Form Machined
Number of Ports 1
Connector Style D-Sub
Max Supply Voltage 100V
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Empty Shell NO
UL Flammability Code 94V-0
Approval Agency UL
Current Rating 7.5A
Depth 14.3mm
Orientation Straight
Total Number of Contacts 37
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature YES
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Capacitance 1nF
Additional Feature PANEL MOUNTABLE
Gender Male
Number of Rows 2
Color Natural
Number of Positions 37
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Filter, Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel
Body Material Plastic
Housing Material Glass
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 9 Weeks
