09644217210
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

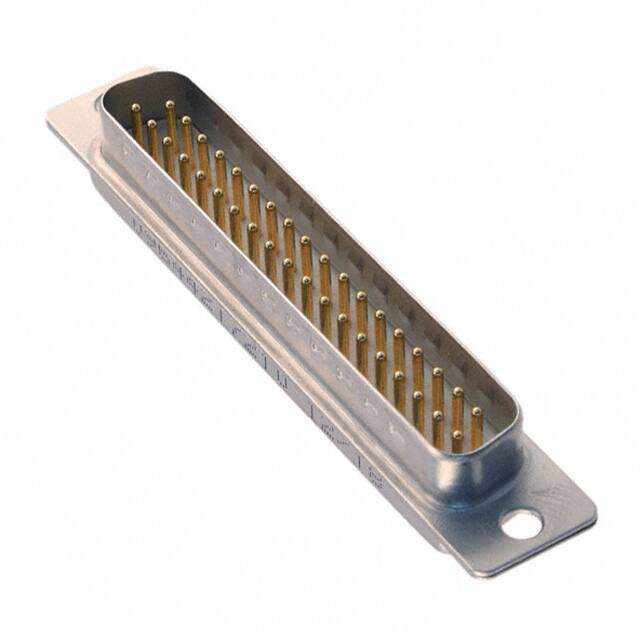

HARTING 09644217210 Filtered D Sub Connector, DC, Plug, 37 Contacts, 47 pF, Plastic Body
PDF
/
Buying Options
Total Price: USD $50.81
Unit Price: USD $50.805926
≥1 USD $50.805926
≥10 USD $47.93012
≥100 USD $45.217096
≥500 USD $42.657637
≥1000 USD $40.24306
Inventory: 5064
Minimum: 1
-
+
Technical Details
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Technical
Shell Size, Connector Layout 4 DC C
Contact Form Machined
Connector Style D-Sub
Flange Feature Housing/Shell (Unthreaded)
Insulation Resistance 1GOhm
Wire Gauge 20 AWG
Contact Resistance 10mOhm
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Total Number of Contacts 37
Current Rating (Amps) 7.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature YES
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Capacitance 47pF
Additional Feature PANEL MOUNTABLE
Voltage - Rated 100V
Gender Male
Number of Rows 2
Color Natural
Number of Positions 37
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Filter, Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Body Material Plastic
Housing Material Glass
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 18 Weeks
