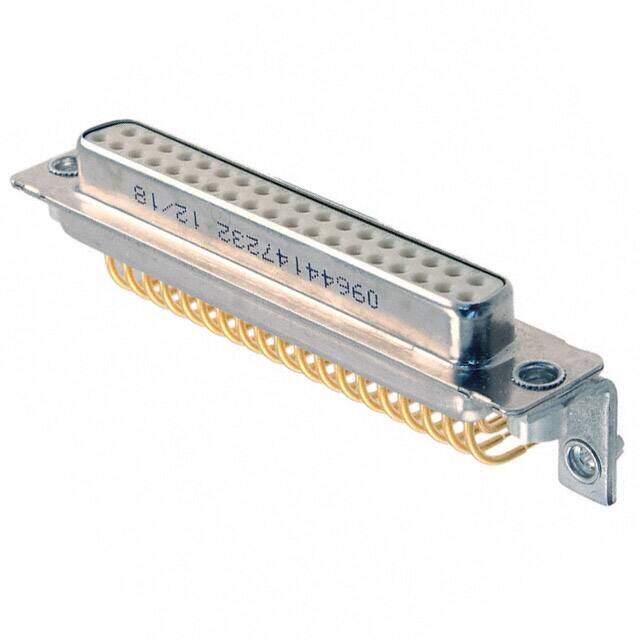

09644147232 image
Favorite
09644147232 image
Favorite

09644147232

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description Filtered d-Sub Connector; Receptacle; 37 Pos (Ra Boardlock/Clinch Nut) 1000 Pf
PDF
/
Buying Options
Total Price: USD $85.13
Unit Price: USD $85.126782
≥1 USD $85.126782
≥10 USD $80.308286
≥100 USD $75.762528
≥500 USD $71.47409
≥1000 USD $67.428388
Inventory: 7170
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 12.5mm
Length 69.3mm

Technical

Backset Spacing 0.401 (10.20mm)
Shell Size, Connector Layout 4 DC C
Contact Form Machined
Connector Style D-Sub
Flange Feature Housing/Shell (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Approval Agency UL
Current Rating 7.5A
Depth 21.6mm
Orientation Right Angle
Total Number of Contacts 37
Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature YES
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Capacitance 1nF
Additional Feature PANEL MOUNTABLE
Voltage - Rated 100V
Gender Receptacle
Number of Rows 2
Color Natural
Number of Positions 37
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Filter, Mounting Brackets
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel
Housing Material Glass
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Mounting Type Through Hole, Right Angle
Mount PCB, Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 9 Weeks
