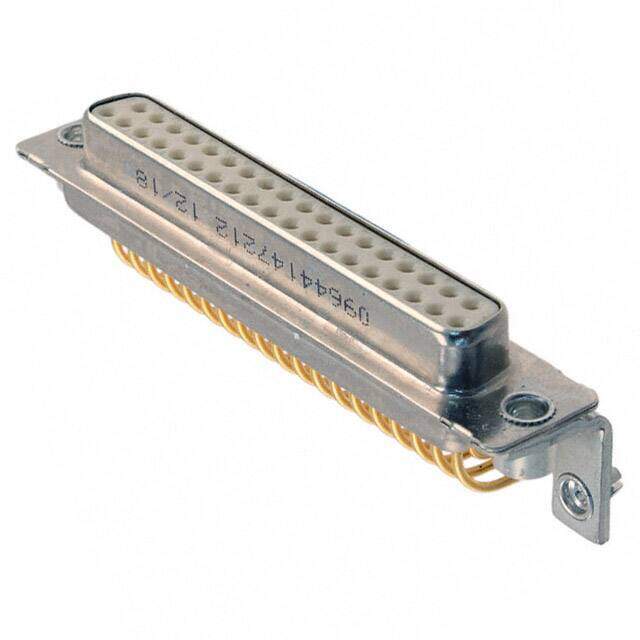

09644147212
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
SOCKET, D, FILTERED, PCB, R/A, 37WAY
PDF
/
Inventory: 9326
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 37
Color Natural
Number of Rows 2
Gender Receptacle
Additional Feature PANEL MOUNTABLE
Capacitance 47pF
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature YES
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 7.5A
Total Number of Contacts 37
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell NO
Working Voltage 100V
Contact Resistance 10mOhm
Insulation Resistance 1GOhm
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub
Contact Form Machined
Shell Size, Connector Layout 4 DC C
Backset Spacing 0.401 (10.20mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Filter, Mounting Brackets
Packaging Bulk
Operating Temperature -20°C~125°C
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Physical
Shell Material, Finish Steel
Body Material Plastic
Housing Material Glass
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Mounting Type Through Hole, Right Angle
Mount Board Lock, Through Hole
Contact Plating Gold
Contact Material Copper Alloy
