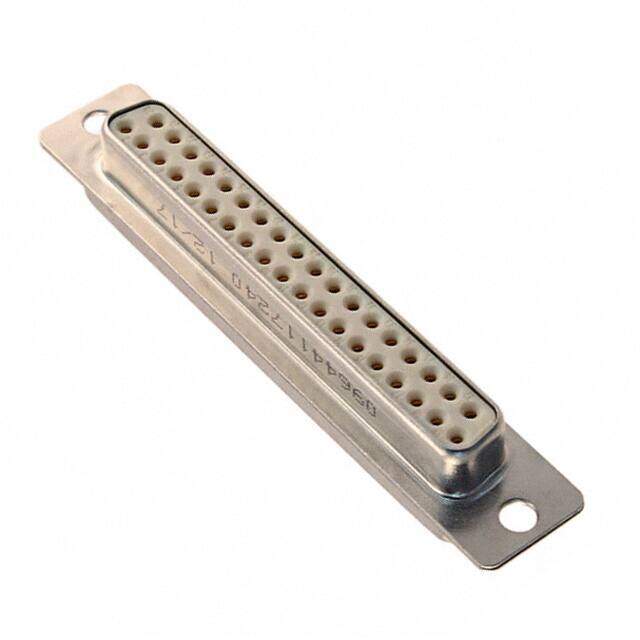

09644117240
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
SOCKET, D, FILTERED, SOLDER, 37WAY
PDF
/
Buying Options
Total Price: USD $39.49
Unit Price: USD $39.4944
≥1 USD $39.4944
≥10 USD $34.58576
≥100 USD $33.090816
≥500 USD $32.023552
≥1000 USD $30.956024
≥3000 USD $29.248102
Inventory: 117
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Technical
Shell Size, Connector Layout 4 DC C
Contact Form Machined
Connector Style D-Sub
Flange Feature Housing/Shell (Unthreaded)
Insulation Resistance 1GOhm
Wire Gauge 20 AWG
Contact Resistance 10mOhm
Working Voltage 100V
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Shell Finish TIN
Current Rating 7.5A
Total Number of Contacts 37
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature YES
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Capacitance 3.9nF
Additional Feature PANEL MOUNTABLE
Gender Receptacle
Number of Rows 2
Color Natural
Number of Positions 37
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Filter
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Body Material Plastic
Housing Material Glass
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Shell Material Polycyclohexylenedimethylene
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
