09644117230
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

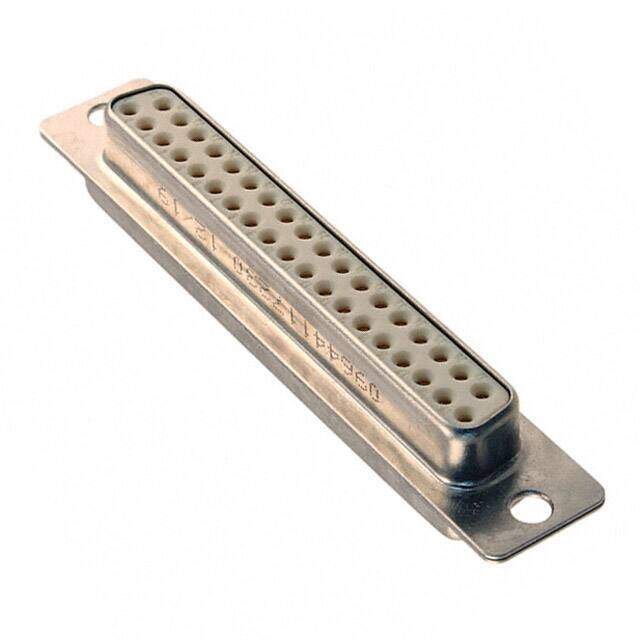

CONN D-SUB RCPT 37P STR SLDR CUP
PDF
/
Inventory: 9967
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 12.5mm
Length 69.3mm
Technical
Shell Size, Connector Layout 4 DC C
Contact Form Machined
Connector Style D-Sub
Plating Tin
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Empty Shell NO
UL Flammability Code 94V-0
Approval Agency UL
Shell Finish TIN
Current Rating 7.5A
Depth 14.5mm
Orientation Straight
Total Number of Contacts 37
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature YES
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Capacitance 1nF
Additional Feature PANEL MOUNTABLE
Voltage - Rated 100V
Gender Receptacle
Number of Rows 2
Color Natural
Number of Positions 37
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Filter
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Housing Material Glass
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, PCB
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
