09643247242
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

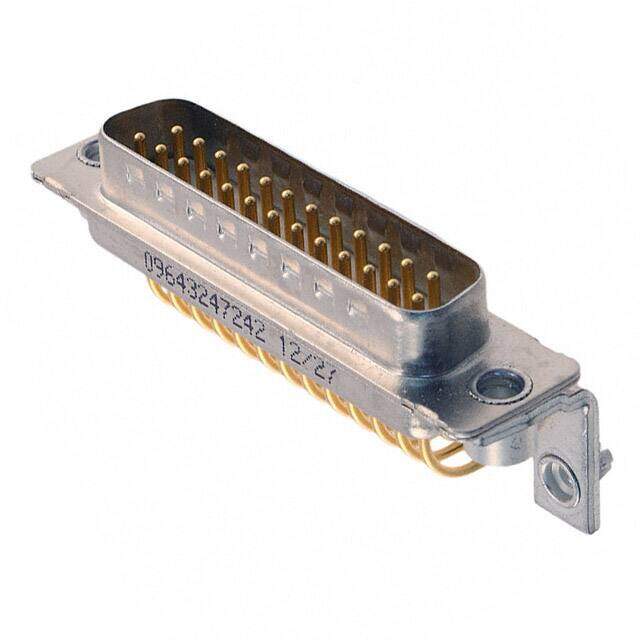

PLUG, D, FILTERED, PCB, R/A, 25WAY
PDF
/
Buying Options
Total Price: USD $48.79
Unit Price: USD $48.793649
≥1 USD $48.793649
≥10 USD $46.031748
≥100 USD $43.426184
≥500 USD $40.968087
≥1000 USD $38.649148
Inventory: 1638
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Technical
Shell Size, Connector Layout 3 DB B
Connector Style D-Sub
Flange Feature Housing/Shell (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Total Number of Contacts 25
Current Rating (Amps) 7.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature YES
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Capacitance 3.9nF
Additional Feature PANEL MOUNTABLE
Voltage - Rated 100V
Gender Male
Number of Rows 2
Color Natural
Number of Positions 25
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Filter, Grounding Indents, Mounting Brackets
Packaging Bulk
Operating Temperature -20°C~125°C
Physical
Shell Material, Finish Steel
Body Material Plastic
Housing Material Glass
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
