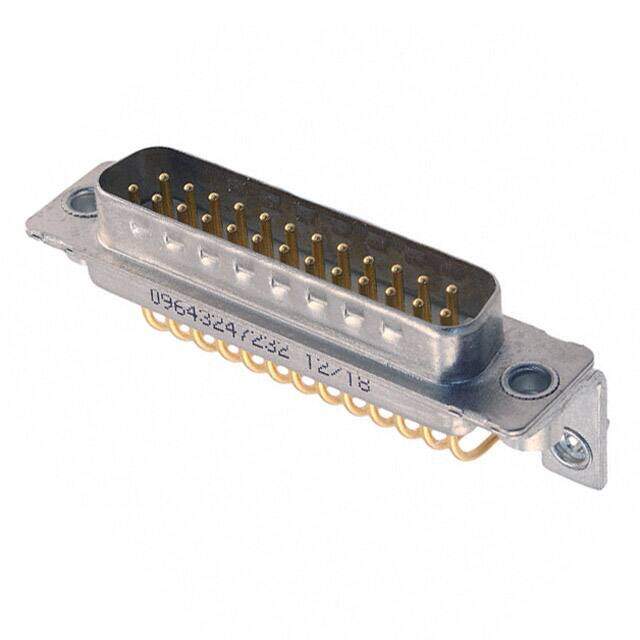

09643247232 image
Favorite
09643247232 image
Favorite

09643247232

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub Standard Connectors 25P MALE RIGHT ANGLE BOARDCLIP/CLINCH NUT
PDF
/
Buying Options
Total Price: USD $27.39
Unit Price: USD $27.3944
≥1 USD $27.3944
≥10 USD $23.98792
≥100 USD $22.951456
≥500 USD $22.2112
≥1000 USD $21.470768
≥3000 USD $20.286147
Inventory: 57
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 19 Weeks

Physical

Contact Material Copper Alloy
Mount PCB, Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Housing Material Glass
Shell Material, Finish Steel

Technical

Operating Temperature -20°C~125°C
Packaging Bulk
Feature Board Lock, Filter, Grounding Indents, Mounting Brackets
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 25
Color Natural
Number of Rows 2
Gender Male
Voltage - Rated 100V
Additional Feature PANEL MOUNTABLE
Capacitance 1nF
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature YES
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.54mm
Total Number of Contacts 25
Orientation Right Angle
Depth 21.4mm
Current Rating 7.5A
Approval Agency UL
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub
Contact Form Machined
Shell Size, Connector Layout 3 DB B

Dimensions

Length 53mm
Width 12.5mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
