09643227800
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

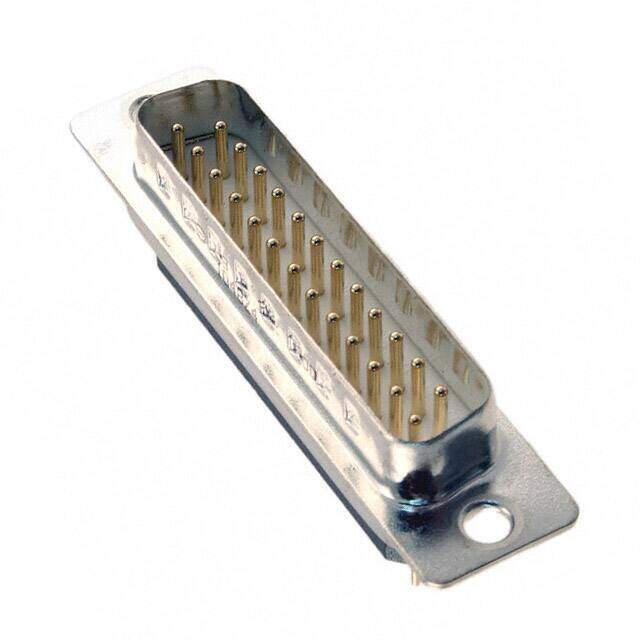

HARTING 09 64 322 7800 FILTERED D SUB, PLUG, 25POS
PDF
/
Buying Options
Total Price: USD $7.4
Unit Price: USD $7.4008
≥1 USD $7.4008
≥10 USD $6.6924
≥100 USD $6.322624
Inventory: 98
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Dielectric Material Polybutylene Terephthalate (PBT)
Housing Material PBT
Body Material Steel
Shell Material, Finish Steel, Tin Plated
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Feature Filter, Grounding Indents
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 25
Number of Rows 2
Gender Male
Voltage - Rated 250V
HTS Code 8536.69.40.30
Contact Finish - Mating NOT SPECIFIED
Contact Type Signal
Pitch 2.77mm
Orientation Straight
Depth 12.5mm
Current Rating 7.5A
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Contact Form Stamped
Shell Size, Connector Layout 3 DB B
Dimensions
Length 53.1mm
Width 6mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
