09643217800

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors

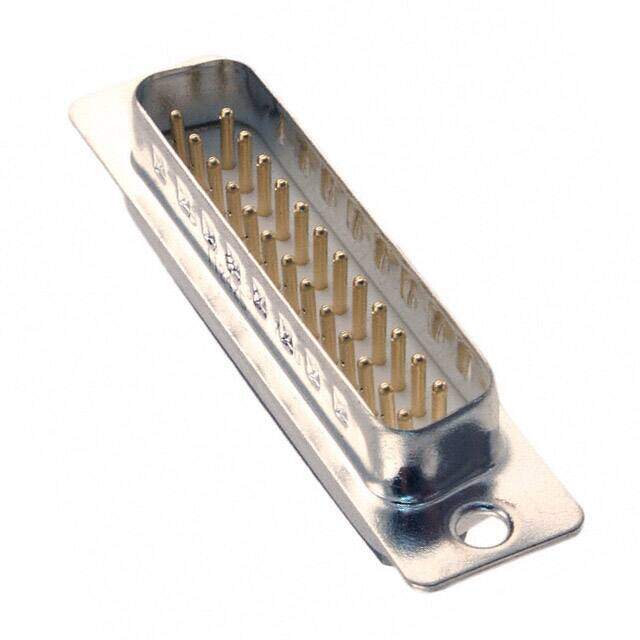

Description HARTING 09643217800 FILTERED D SUB, PLUG, 25 POSITION
PDF
/
Buying Options
Total Price: USD $6.01
Unit Price: USD $6.008003
≥1 USD $6.008003
≥10 USD $5.667926
≥100 USD $5.3471
≥500 USD $5.044436
≥1000 USD $4.758902
Inventory: 6698
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Gold
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Dielectric Material Polybutylene Terephthalate (PBT)
Housing Material Glass
Body Material Steel
Shell Material, Finish Steel, Tin Plated

Technical

Operating Temperature -55°C~105°C
Packaging Bulk
Feature Filter, Grounding Indents
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 25
Color Natural
Number of Rows 2
Gender Male
Voltage - Rated 250V
HTS Code 8536.69.40.30
Contact Finish - Mating NOT SPECIFIED
Contact Type Signal
Pitch 2.77mm
Orientation Straight
Current Rating 7.5A
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Contact Form Stamped
Shell Size, Connector Layout 3 DB B

Dimensions

Length 53.1mm
Width 12.5mm

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
