09643217230

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors

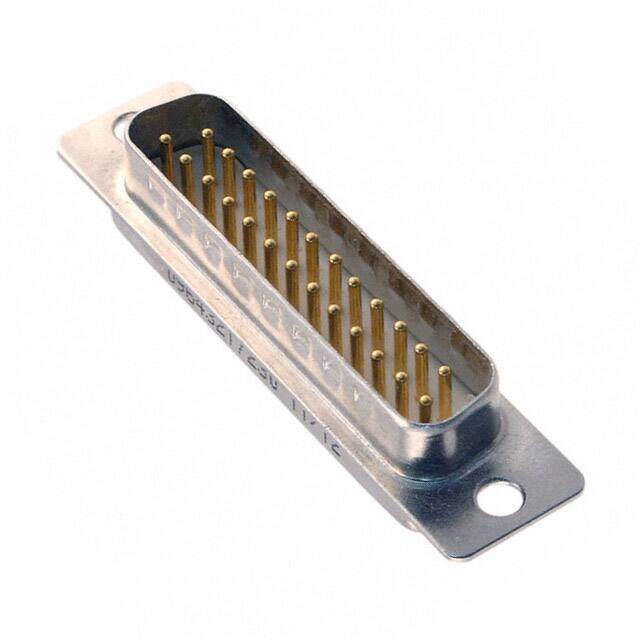

Description CONN D-SUB PLUG 25P SLDR CUP
PDF
/
Buying Options
Total Price: USD $27.92
Unit Price: USD $27.9224
≥1 USD $27.9224
≥10 USD $26.576
Inventory: 139
Minimum: 1
-
+

Technical Details

Technical

Packaging Bulk
Feature Filter, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 25
Color Natural
Number of Rows 2
Gender Male
Additional Feature PANEL MOUNTABLE
Capacitance 1nF
Voltage - Rated DC 100V
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature YES
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 25
Orientation Straight
Depth 14.3mm
Current Rating 7.5A
Approval Agency UL
UL Flammability Code 94V-0
Empty Shell NO
Contact Resistance 10mOhm
Wire Gauge 20 AWG
Insulation Resistance 1GOhm
Operating Temperature -55°C~125°C
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Contact Form Machined
Shell Size, Connector Layout 3 DB B

Physical

Shell Material, Finish Steel
Body Material Metal, Steel
Housing Material Glass
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, PCB
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 15 Weeks

Dimensions

Length 53mm
Width 12.5mm

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
