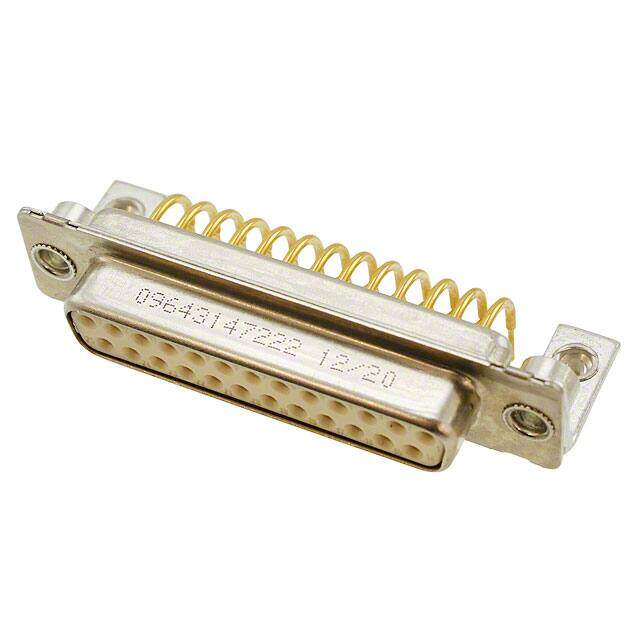

09643147222
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors 25 WAY RA FEM
PDF
/
Inventory: 1854
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Backset Spacing 0.401 (10.20mm)
Shell Size, Connector Layout 3 DB B
Contact Form Machined
Connector Style D-Sub
Flange Feature Housing/Shell (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Total Number of Contacts 25
Current Rating (Amps) 7.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature YES
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Additional Feature PANEL MOUNTABLE
Voltage - Rated 100V
Gender Female
Number of Rows 2
Color Natural
Number of Positions 25
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Filter, Mounting Brackets
Packaging Bulk
Operating Temperature -20°C~125°C
Physical
Shell Material, Finish Steel, Tin Plated
Housing Material Glass
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
