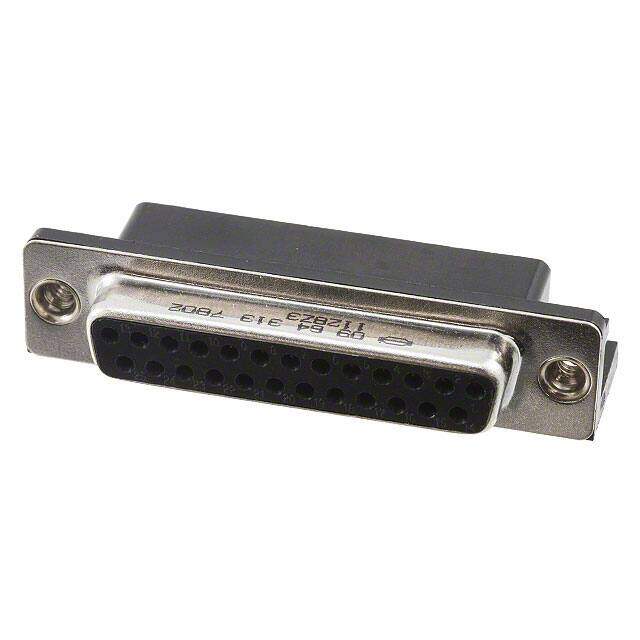

09643137802
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
SOCKET, DSUB, FILTERED, US, 25WAY
PDF
/
Buying Options
Total Price: USD $4.26
Unit Price: USD $4.258764
≥1 USD $4.258764
≥10 USD $4.017706
≥100 USD $3.790289
≥500 USD $3.575749
≥1000 USD $3.373343
Inventory: 8658
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Width 18.5mm
Length 53.1mm
Technical
Max Supply Voltage (AC) 250V
Shell Size, Connector Layout 3 DB B
Contact Form Stamped
Number of Ports 1
Connector Style D-Sub
Flange Feature Housing/Shell (4-40)
Empty Shell NO
Current Rating 7.5A
Depth 18.5mm
Orientation Right Angle
Total Number of Contacts 25
Pitch 2.77mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature YES
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Capacitance 0F
Gender Receptacle
Number of Rows 2
Number of Positions 25
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock, Filter
Packaging Tray
Operating Temperature -55°C~105°C
Physical
Shell Material, Finish Steel, Tin Plated
Body Material Steel
Housing Material Polybutylene
Dielectric Material Polybutylene Terephthalate (PBT)
Material PBT
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
