09643127800
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

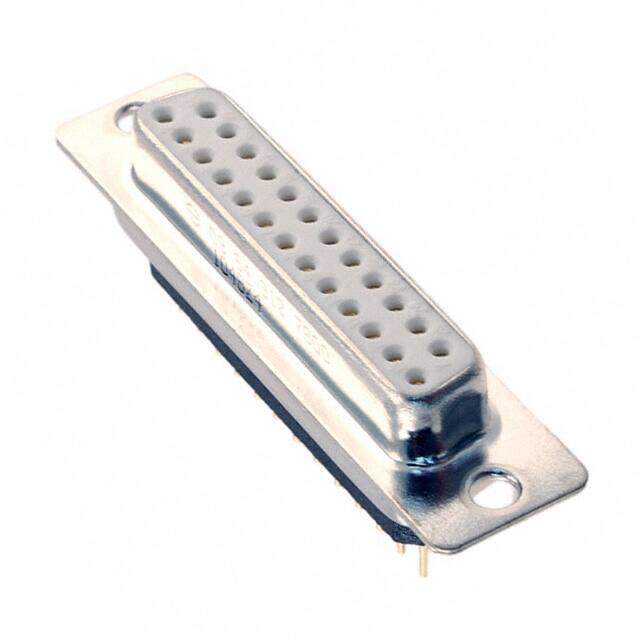

HARTING 09643127800 FILTERED D SUB, RECEPTACLE, 25 POSITION
PDF
/
Inventory: 7181
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Width 6mm
Length 53.1mm
Technical
Shell Size, Connector Layout 3 DB B
Contact Form Stamped
Connector Style D-Sub
Flange Feature Housing/Shell (Unthreaded)
Current Rating 7.5A
Depth 12.5mm
Orientation Straight
Pitch 2.77mm
Contact Type Signal
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated 250V
Gender Receptacle
Number of Rows 2
Number of Positions 25
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Filter
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Shell Material, Finish Steel, Tin Plated
Body Material Steel
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 11 Weeks
