09643127235
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

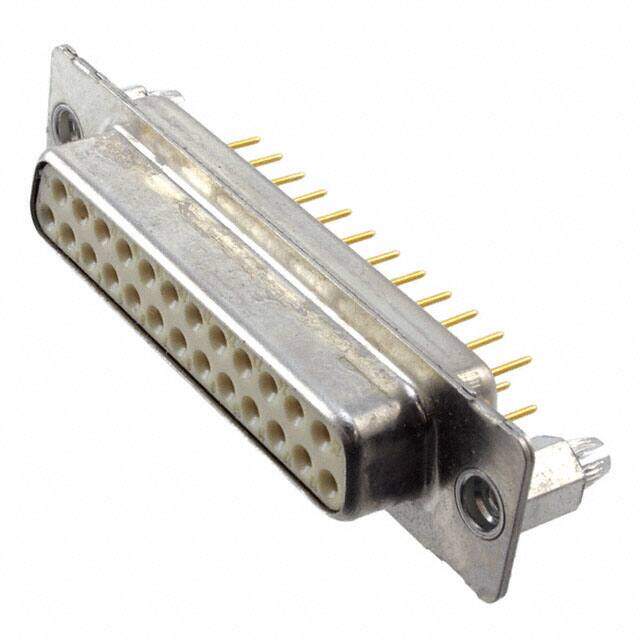

Conn D-Subminiature SKT 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $45.56
Unit Price: USD $45.5576
≥1 USD $45.5576
≥10 USD $41.80792
≥100 USD $40.20016
≥500 USD $38.860096
≥1000 USD $36.716064
Inventory: 90
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 53mm
Technical
Shell Size, Connector Layout 3 DB B
Contact Form Machined
Number of Ports 1
Connector Style D-Sub
Max Supply Voltage 100V
Flange Feature Board Side (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Shell Finish TIN
Current Rating 7.5A
Depth 12.5mm
Orientation Straight
Total Number of Contacts 25
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature YES
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Additional Feature PANEL MOUNTABLE
Gender Receptacle
Number of Rows 2
Color Natural
Number of Positions 25
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Filter
Packaging Bulk
Operating Temperature -20°C~125°C
Physical
Shell Material, Finish Steel, Tin Plated
Housing Material Glass
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 15 Weeks
