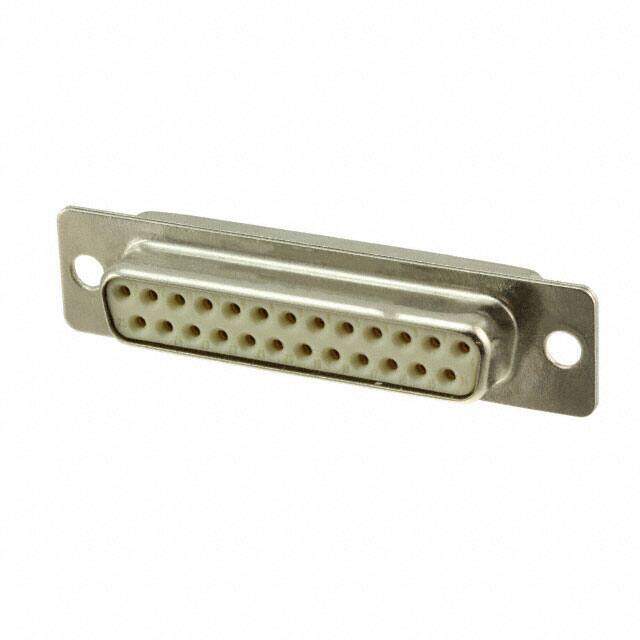

09643127210
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
SOCKET, D, FILTERED, PCB, STR, 25WAY
PDF
/
Buying Options
Total Price: USD $16.91
Unit Price: USD $16.9136
≥1 USD $16.9136
≥10 USD $16.09344
Inventory: 57
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Technical
Shell Size, Connector Layout 3 DB B
Contact Form Machined
Connector Style D-Sub
Plating Tin
Flange Feature Housing/Shell (Unthreaded)
Insulation Resistance 1GOhm
Contact Resistance 10mOhm
Working Voltage 100V
Empty Shell NO
UL Flammability Code 94V-0
Current Rating 7.5A
Total Number of Contacts 25
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature YES
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Capacitance 47pF
Additional Feature PANEL MOUNTABLE
Gender Receptacle
Number of Rows 2
Color Natural
Number of Positions 25
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Filter
Packaging Bulk
Operating Temperature -20°C~125°C
Physical
Shell Material, Finish Steel
Body Material Plastic
Housing Material Glass
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Shell Material Polycyclohexylenedimethylene
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 7 Weeks
