09643117800

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors

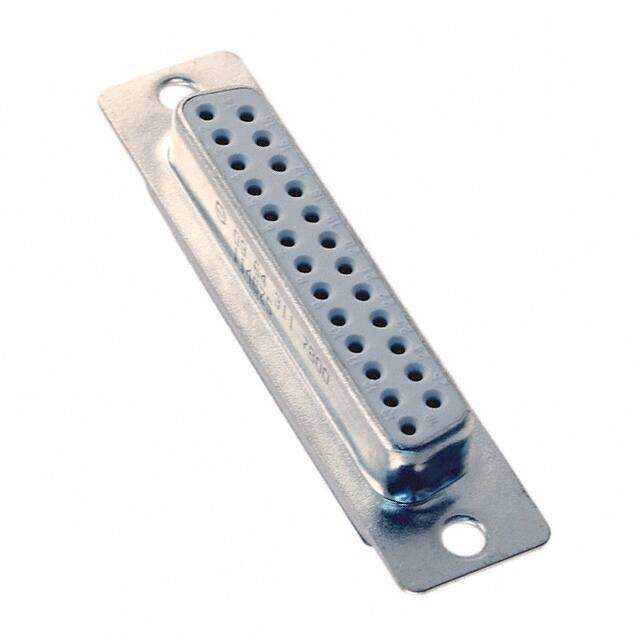

Description FILTERED D SUB, RECEPTACLE, 25POS
PDF
/
Inventory: 9042
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 11 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Gold
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Dielectric Material Polybutylene Terephthalate (PBT)
Housing Material PBT
Body Material Steel
Shell Material, Finish Steel, Tin Plated

Technical

Operating Temperature -55°C~105°C
Packaging Bulk
Feature Filter
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Gender Receptacle
Voltage - Rated 250V
HTS Code 8536.69.40.30
Contact Finish - Mating NOT SPECIFIED
Contact Type Signal
Pitch 2.77mm
Orientation Straight
Current Rating 7.5A
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Contact Form Stamped
Shell Size, Connector Layout 3 DB B

Dimensions

Length 53.1mm
Width 12.5mm

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
