09643117230

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors

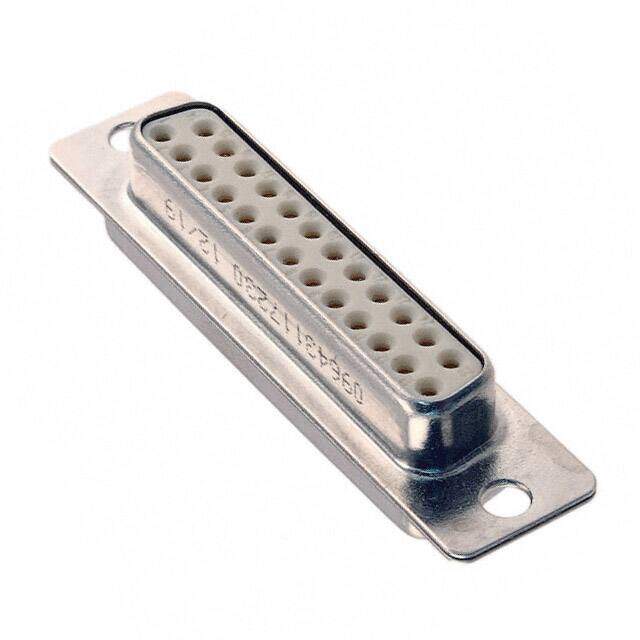

Description CONN D-SUB RCPT 25P SLDR CUP
PDF
/
Buying Options
Total Price: USD $38.98
Unit Price: USD $38.984
≥1 USD $38.984
≥10 USD $35.772
≥100 USD $34.396736
≥500 USD $33.24992
≥1000 USD $31.41556
≥3000 USD $30.498266
Inventory: 50
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Dimensions

Width 12.5mm
Length 53mm
Height 12.5mm

Technical

Shell Size, Connector Layout 3 DB B
Contact Form Machined
Number of Ports 1
Connector Style D-Sub
Plating Tin
Flange Feature Housing/Shell (Unthreaded)
Insulation Resistance 1GOhm
Wire Gauge 20 AWG
Contact Resistance 10mOhm
Working Voltage 100V
Empty Shell NO
UL Flammability Code 94V-0
Approval Agency UL
Shell Finish TIN
Current Rating 7.5A
Depth 11.2mm
Orientation Straight
Total Number of Contacts 25
Pitch 2.84mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature YES
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated DC 100V
Capacitance 1nF
Additional Feature PANEL MOUNTABLE
Gender Receptacle
Number of Rows 2
Color Natural
Number of Positions 25
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Filter
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shell Material, Finish Steel
Body Material Metal, Plastic, Steel
Housing Material Glass
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, PCB, Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 15 Weeks
