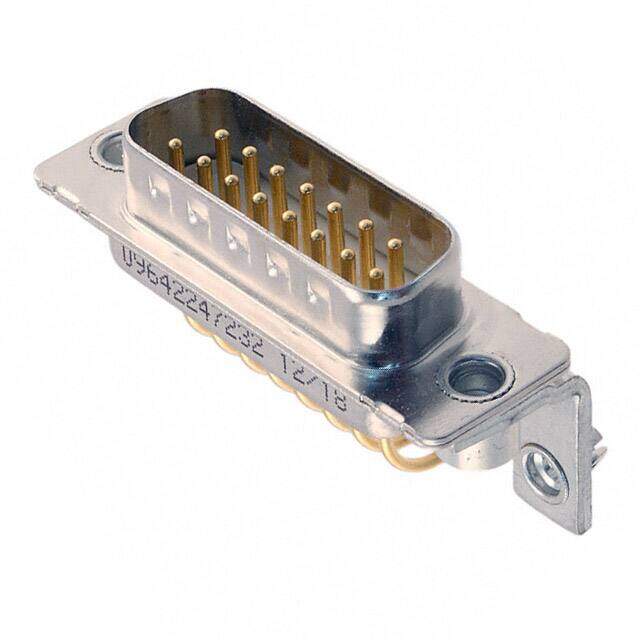

09642247232
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
PLUG, D, FILTERED, PCB, R/A, 15WAY - More Details
PDF
/
Buying Options
Total Price: USD $33.82
Unit Price: USD $33.818091
≥1 USD $33.818091
≥10 USD $31.903855
≥100 USD $30.097981
≥500 USD $28.394319
≥1000 USD $26.787099
Inventory: 1143
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 12.5mm
Length 39.1mm
Technical
Shell Size, Connector Layout 2 DA A
Contact Form Machined
Connector Style D-Sub
Flange Feature Housing/Shell (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Approval Agency UL
Current Rating 7.5A
Depth 21.4mm
Orientation Right Angle
Total Number of Contacts 15
Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature YES
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Capacitance 1nF
Additional Feature PANEL MOUNTABLE
Voltage - Rated 100V
Gender Male
Number of Rows 2
Color Natural
Number of Positions 15
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Filter, Grounding Indents
Packaging Bulk
Operating Temperature -20°C~125°C
Physical
Shell Material, Finish Steel
Housing Material Glass
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Mounting Type Through Hole, Right Angle
Mount PCB, Through Hole
Contact Material Copper Alloy
