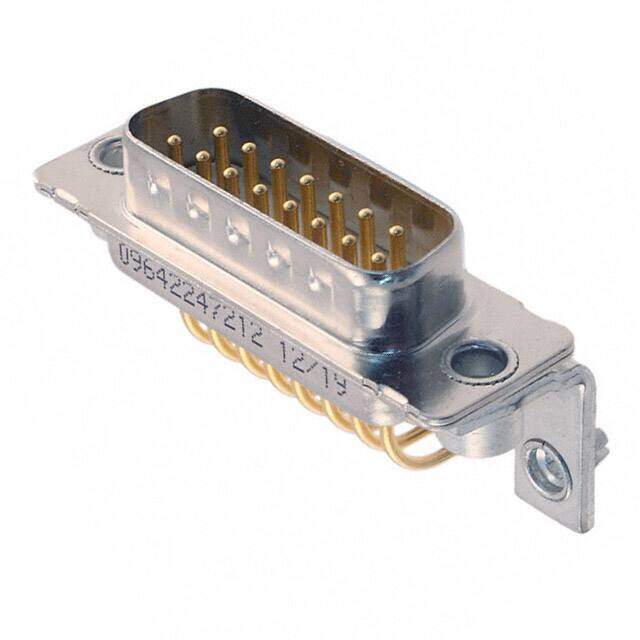

09642247212

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description PLUG, D, FILTERED, PCB, R/A, 15WAY
PDF
/
Buying Options
Total Price: USD $19.75
Unit Price: USD $19.7472
≥1 USD $19.7472
≥10 USD $17.29288
≥100 USD $16.545408
≥500 USD $16.011776
≥1000 USD $15.477968
≥3000 USD $14.624051
Inventory: 70
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Dimensions

Length 39.1mm

Technical

Shell Size, Connector Layout 2 DA A
Contact Form Machined
Number of Ports 1
Connector Style D-Sub
Max Supply Voltage 100V
Flange Feature Housing/Shell (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Current Rating 7.5A
Depth 21.4mm
Orientation Right Angle
Total Number of Contacts 15
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature YES
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Capacitance 47pF
Additional Feature PANEL MOUNTABLE
Gender Male
Number of Rows 2
Color Natural
Number of Positions 15
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Filter, Grounding Indents, Mounting Brackets
Packaging Bulk
Operating Temperature -20°C~125°C

Physical

Shell Material, Finish Steel
Body Material Plastic
Housing Material Glass
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Material Metal
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 9 Weeks
