09642237802
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

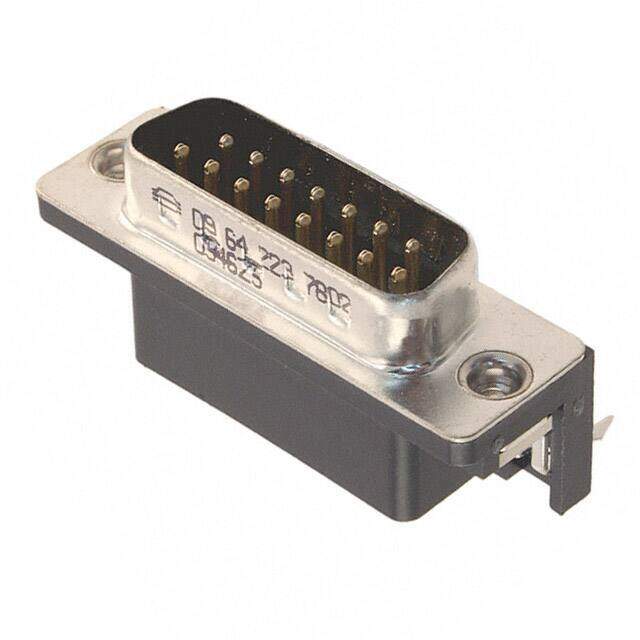

HARTING 09 64 223 7802 Filtered D Sub Connector, Ferrite, DA, Plug, 15 Contacts, 0 F, Steel Body
PDF
/
Inventory: 2747
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Width 18.5mm
Length 39.2mm
Technical
Shell Size, Connector Layout 2 DA A
Contact Form Stamped
Connector Style D-Sub
Flange Feature Housing/Shell (4-40)
Empty Shell NO
Current Rating 7.5A
Depth 12.5mm
Orientation Right Angle
Total Number of Contacts 15
Pitch 2.77mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature YES
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Capacitance 0F
HTS Code 8536.69.40.30
Voltage - Rated 250V
Gender Male
Number of Rows 2
Number of Positions 15
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock, Filter, Grounding Indents
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Shell Material, Finish Steel, Tin Plated
Body Material Steel
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT)
Material Polybutylene
Mounting Type Panel Mount, Through Hole, Right Angle
Mount Panel, Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 11 Weeks
