09642227235
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

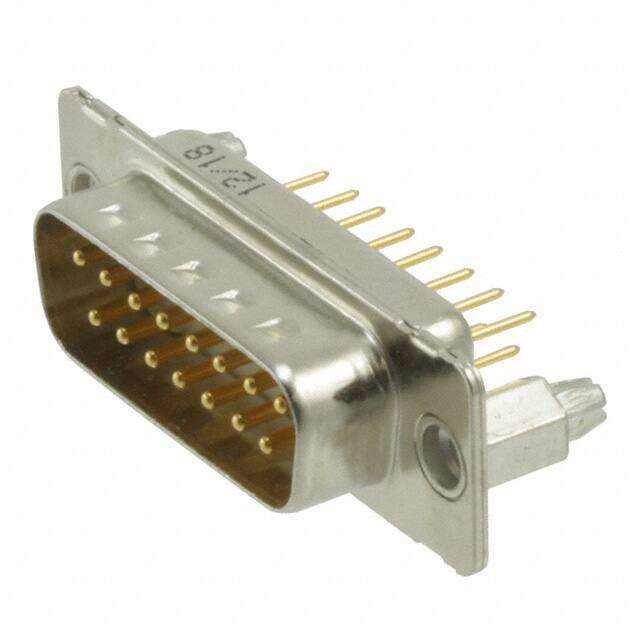

D-Sub Standard Connectors 15P MALE STRAIGHT BOARDCLIP/CLINCH NUT
PDF
/
Buying Options
Total Price: USD $34.36
Unit Price: USD $34.364
≥1 USD $34.364
≥10 USD $30.0916
≥100 USD $28.791136
≥500 USD $27.86256
≥1000 USD $26.933808
≥3000 USD $25.447805
Inventory: 129
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Shell Size, Connector Layout 2 DA A
Contact Form Machined
Connector Style D-Sub
Flange Feature Board Side (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Shell Finish TIN
Total Number of Contacts 15
Current Rating (Amps) 7.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature YES
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Additional Feature PANEL MOUNTABLE
Voltage - Rated 100V
Gender Male
Number of Rows 2
Color Natural
Number of Positions 15
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Filter, Grounding Indents
Packaging Bulk
Operating Temperature -20°C~125°C
Physical
Shell Material, Finish Steel
Housing Material Glass
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
