09642217230
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

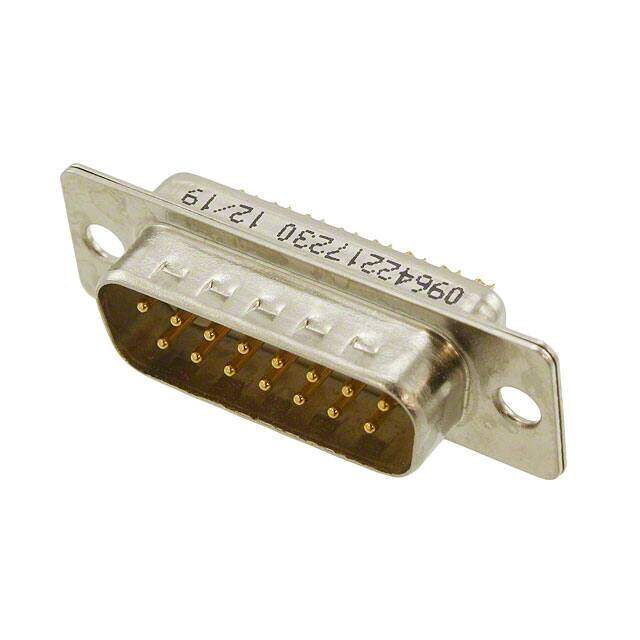

CONN D-SUB PLUG 15P SLDR CUP
PDF
/
Inventory: 8172
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Free Hanging, PCB, Through Hole
Mounting Type Free Hanging (In-Line)
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Housing Material Glass
Body Material Metal, Plastic, Steel
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Filter, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 15
Color Natural
Number of Rows 2
Gender Male
Additional Feature PANEL MOUNTABLE
Capacitance 1nF
Voltage - Rated DC 100V
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature YES
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 15
Orientation Straight
Depth 14.3mm
Current Rating 7.5A
Approval Agency UL
UL Flammability Code 94V-0
Empty Shell NO
Working Voltage 100V
Contact Resistance 10mOhm
Wire Gauge 20 AWG
Insulation Resistance 1GOhm
Flange Feature Housing/Shell (Unthreaded)
Max Supply Voltage 100V
Connector Style D-Sub
Number of Ports 1
Contact Form Machined
Shell Size, Connector Layout 2 DA A
Dimensions
Length 39.1mm
Width 12.5mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
