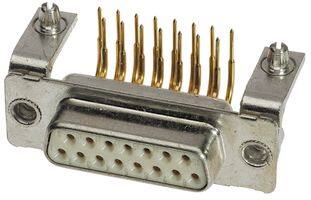

09642147242
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
SOCKET, D, FILTERED, PCB, R/A, 15WAY
PDF
/
Buying Options
Total Price: USD $45.3
Unit Price: USD $45.304836
≥1 USD $45.304836
≥10 USD $42.740414
≥100 USD $40.321145
≥500 USD $38.03881
≥1000 USD $35.885679
Inventory: 7989
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole, Right Angle
Shell Material Polycyclohexylenedimethylene
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Housing Material Glass
Body Material Metal, Plastic, Steel
Shell Material, Finish Steel
Technical
Operating Temperature -20°C~125°C
Packaging Bulk
Feature Board Lock, Filter, Mounting Brackets
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 15
Color Natural
Number of Rows 2
Gender Receptacle
Additional Feature PANEL MOUNTABLE
Capacitance 3.9nF
Voltage - Rated DC 100V
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature YES
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.54mm
Total Number of Contacts 15
Current Rating 7.5A
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Empty Shell NO
Contact Resistance 10mOhm
Insulation Resistance 1GOhm
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub
Contact Form Machined
Shell Size, Connector Layout 2 DA A
Backset Spacing 0.401 (10.20mm)
Dimensions
Height 12.5mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
