09642127800
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

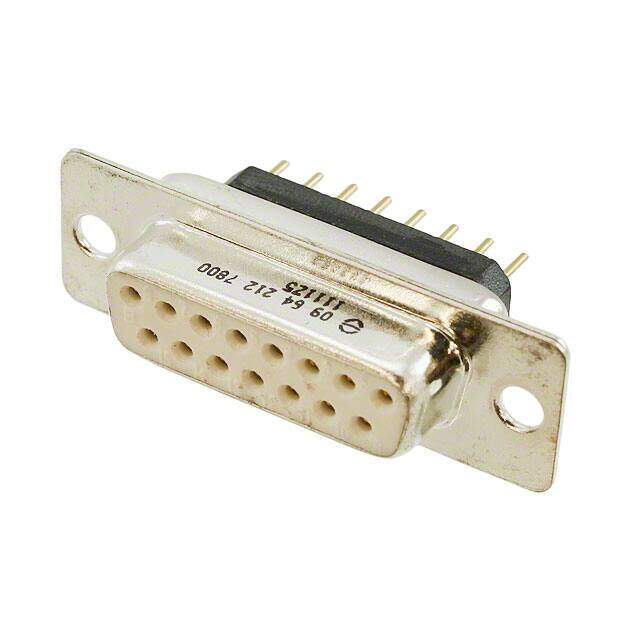

CONN D-SUB RCPT 15POS VERT SLDR
PDF
/
Buying Options
Total Price: USD $5.05
Unit Price: USD $5.051642
≥1 USD $5.051642
≥10 USD $4.765708
≥100 USD $4.495944
≥500 USD $4.241455
≥1000 USD $4.001374
Inventory: 6626
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Dielectric Material Polybutylene Terephthalate (PBT)
Housing Material PBT
Body Material Steel
Shell Material, Finish Steel, Tin Plated
Technical
Operating Temperature -55°C~105°C
Packaging Tray
Feature Filter
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
Gender Receptacle
Voltage - Rated 250V
Contact Finish - Mating NOT SPECIFIED
Contact Type Signal
Pitch 2.77mm
Orientation Straight
Depth 12.5mm
Current Rating 7.5A
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Contact Form Stamped
Shell Size, Connector Layout 2 DA A
Dimensions
Length 39.2mm
Width 6mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
