09642127230

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors

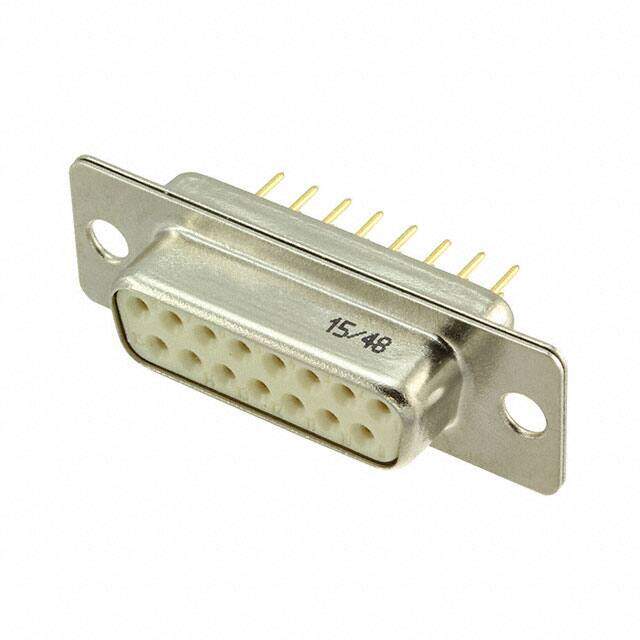

Description HARTING 09642127230 Filtered D Sub Connector, DA, Receptacle, 15 Contacts, 1000 pF, Steel Body
PDF
/
Buying Options
Total Price: USD $32.02
Unit Price: USD $32.0232
≥1 USD $32.0232
≥10 USD $28.04032
≥100 USD $26.829088
≥500 USD $25.96352
≥1000 USD $25.098128
≥3000 USD $23.71343
Inventory: 111
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Material Copper Alloy
Mount PCB, Through Hole
Mounting Type Through Hole
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Housing Material Glass
Shell Material, Finish Steel

Technical

Operating Temperature -20°C~125°C
Packaging Bulk
Feature Filter
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 15
Color Natural
Number of Rows 2
Gender Receptacle
Additional Feature PANEL MOUNTABLE
Capacitance 1nF
Voltage - Rated DC 100V
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature YES
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.84mm
Total Number of Contacts 15
Orientation Straight
Depth 17.4mm
Current Rating 7.5A
Approval Agency UL
UL Flammability Code 94V-0
Empty Shell NO
Contact Resistance 10mOhm
Insulation Resistance 1GOhm
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Contact Form Machined
Shell Size, Connector Layout 2 DA A

Dimensions

Length 39.1mm
Width 12.5mm

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
