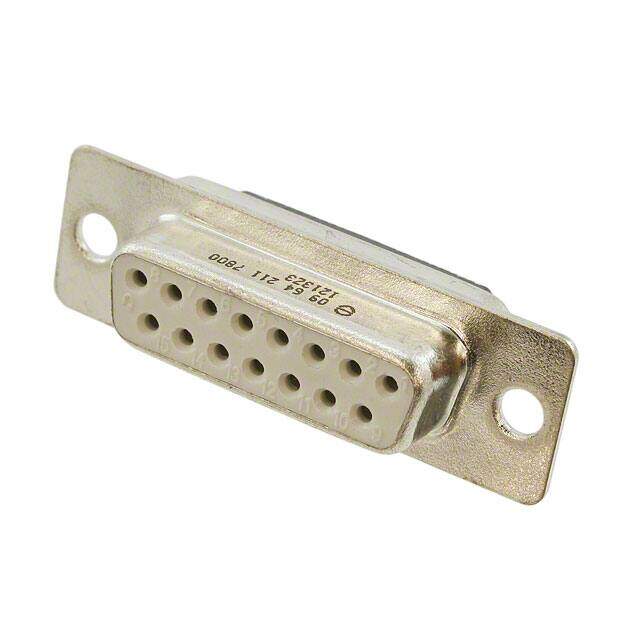

09642117800 image
Favorite
09642117800 image
Favorite

09642117800

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description FILTERED D SUB, RECEPTACLE, 15POS
PDF
/
Buying Options
Total Price: USD $3.02
Unit Price: USD $3.018088
≥1 USD $3.018088
≥10 USD $2.847259
≥100 USD $2.686092
≥500 USD $2.534046
≥1000 USD $2.39061
Inventory: 5327
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Dimensions

Width 12.5mm
Length 39.2mm

Technical

Shell Size, Connector Layout 2 DA A
Contact Form Stamped
Connector Style D-Sub
Flange Feature Housing/Shell (Unthreaded)
Current Rating 7.5A
Orientation Straight
Pitch 2.77mm
Contact Type Signal
Contact Finish - Mating NOT SPECIFIED
HTS Code 8536.69.40.30
Voltage - Rated 250V
Gender Receptacle
Number of Rows 2
Number of Positions 15
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Filter
Packaging Bulk
Operating Temperature -55°C~105°C

Physical

Shell Material, Finish Steel, Tin Plated
Body Material Steel
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT)
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 11 Weeks
