09641247232
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

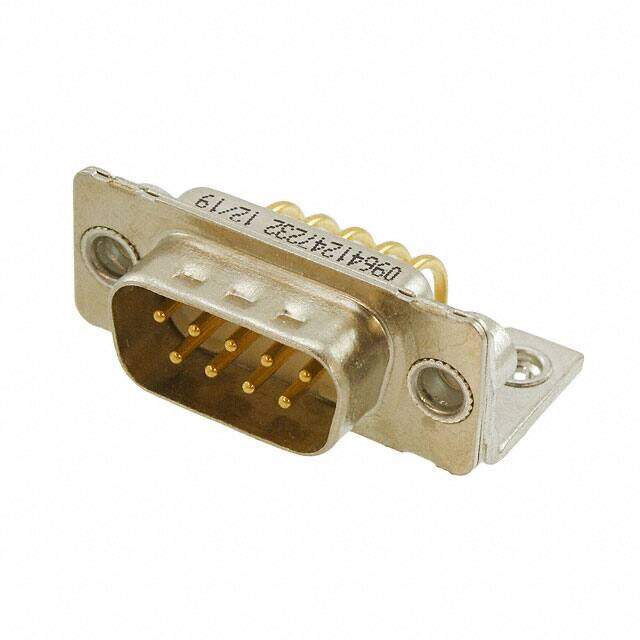

HARTING - 09641247232 - PLUG, D, FILTERED, PCB, R/A, 9WAY
PDF
/
Buying Options
Total Price: USD $17.42
Unit Price: USD $17.424
≥1 USD $17.424
≥10 USD $16.5792
Inventory: 203
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Board Lock, PCB, Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Housing Material Glass
Body Material Metal, Plastic, Steel
Shell Material, Finish Steel
Technical
Operating Temperature -20°C~125°C
Packaging Bulk
Feature Board Lock, Filter, Grounding Indents, Mounting Brackets
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 9
Color Natural
Number of Rows 2
Gender Male
Additional Feature PANEL MOUNTABLE
Capacitance 1nF
Voltage - Rated DC 100V
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature YES
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.54mm
Total Number of Contacts 9
Orientation Right Angle
Depth 21.4mm
Current Rating 7.5A
Approval Agency UL
Empty Shell NO
Working Voltage 100V
Contact Resistance 10mOhm
Insulation Resistance 1GOhm
Flange Feature Housing/Shell (4-40)
Max Supply Voltage 100V
Plating Tin
Connector Style D-Sub
Number of Ports 1
Contact Form Machined
Shell Size, Connector Layout 1 DE E
Dimensions
Height 12.5mm
Length 30.8mm
Width 12.5mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
