09641227800

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors

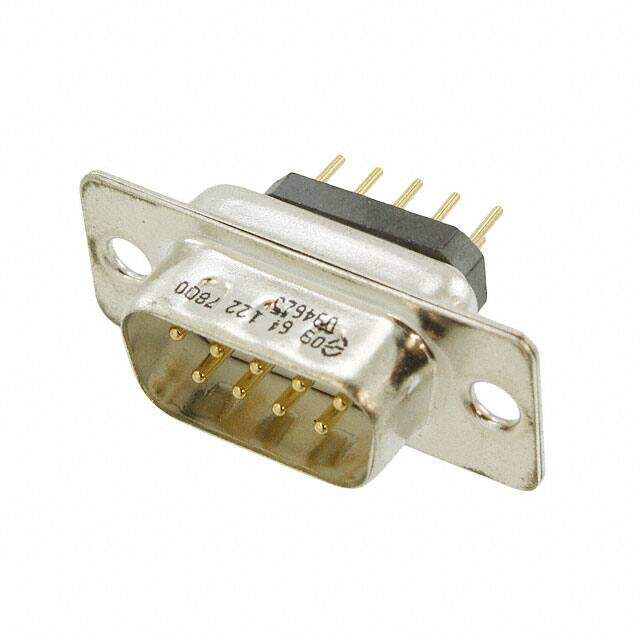

Description CONN D-SUB PLUG 9POS VERT SOLDER
PDF
/
Inventory: 2423
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Dimensions

Width 6mm
Length 30.8mm

Technical

Shell Size, Connector Layout 1 DE E
Contact Form Stamped
Connector Style D-Sub
Flange Feature Housing/Shell (Unthreaded)
Current Rating 7.5A
Depth 12.5mm
Orientation Straight
Pitch 2.77mm
Contact Type Signal
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated 250V
Gender Male
Number of Rows 2
Number of Positions 9
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Filter, Grounding Indents
Packaging Tray
Operating Temperature -55°C~105°C

Physical

Shell Material, Finish Steel, Tin Plated
Body Material Steel
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 11 Weeks
