09641217230
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

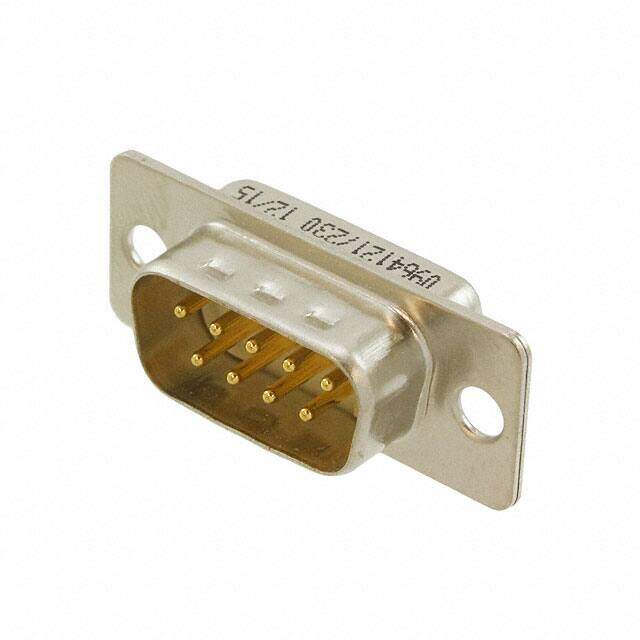

Filtered D Sub Connector, DE, Plug, 9 Contacts, 1000 pF, Steel Body
PDF
/
Buying Options
Total Price: USD $16.69
Unit Price: USD $16.6936
≥1 USD $16.6936
≥10 USD $14.61416
≥100 USD $13.9832
≥500 USD $13.531936
≥1000 USD $13.080936
≥3000 USD $12.359213
Inventory: 105
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Width 12.5mm
Length 30.8mm
Technical
Shell Size, Connector Layout 1 DE E
Contact Form Machined
Number of Ports 1
Connector Style D-Sub
Max Supply Voltage 100V
Flange Feature Housing/Shell (Unthreaded)
Insulation Resistance 1GOhm
Wire Gauge 20 AWG
Contact Resistance 10mOhm
Working Voltage 100V
Empty Shell NO
Approval Agency UL
Current Rating 7.5A
Depth 14.3mm
Orientation Straight
Total Number of Contacts 9
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature YES
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated DC 100V
Capacitance 1nF
Additional Feature PANEL MOUNTABLE
Gender Male
Number of Rows 2
Color Natural
Number of Positions 9
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Filter, Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Body Material Metal, Plastic, Steel
Housing Material Glass
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, PCB, Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 15 Weeks
