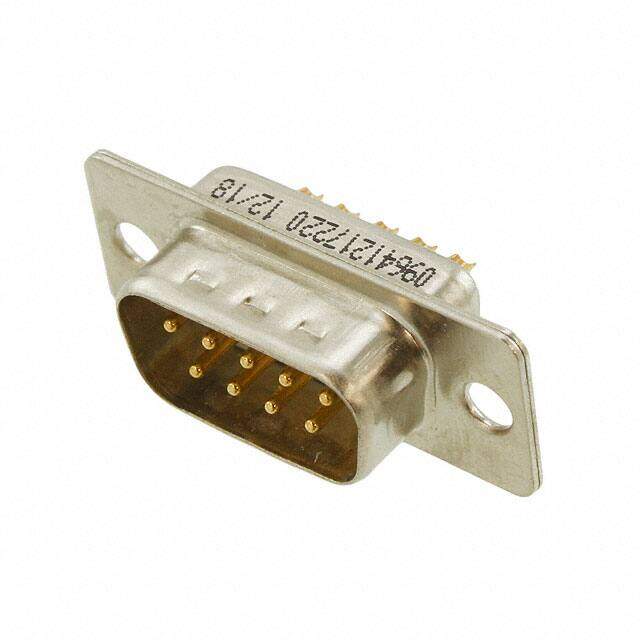

09641217220
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors 9 WAY S CUP ML
PDF
/
Inventory: 6457
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Shell Size, Connector Layout 1 DE E
Contact Form Machined
Connector Style D-Sub
Flange Feature Housing/Shell (Unthreaded)
Wire Gauge 20 AWG
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Total Number of Contacts 9
Current Rating (Amps) 7.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature YES
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Additional Feature PANEL MOUNTABLE
Voltage - Rated 100V
Gender Male
Number of Rows 2
Color Natural
Number of Positions 9
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Filter, Grounding Indents
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel, Tin Plated
Housing Material Glass
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
