09641217210

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors

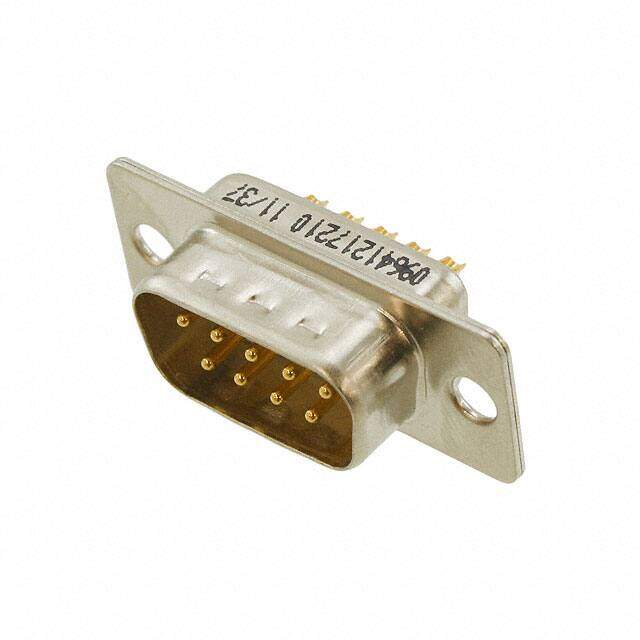

Description HARTING 09641217210 Filtered D Sub Connector, D-Sub Filter Series, DE, Plug, 9 Contacts, 47 pF, Steel Body
PDF
/
Buying Options
Total Price: USD $21.41
Unit Price: USD $21.4104
≥1 USD $21.4104
≥10 USD $18.74664
≥100 USD $17.936864
≥500 USD $17.358176
≥1000 USD $16.779664
≥3000 USD $15.853869
Inventory: 62
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Material Copper Alloy
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Housing Material Glass
Body Material Plastic, Steel
Shell Material, Finish Steel

Technical

Operating Temperature -55°C~125°C
Packaging Bulk
Feature Filter, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 9
Color Natural
Number of Rows 2
Gender Male
Additional Feature PANEL MOUNTABLE
Capacitance 47pF
Voltage - Rated DC 100V
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature YES
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 7.5A
Total Number of Contacts 9
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Contact Resistance 10mOhm
Wire Gauge 20 AWG
Insulation Resistance 1GOhm
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Contact Form Machined
Shell Size, Connector Layout 1 DE E

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
