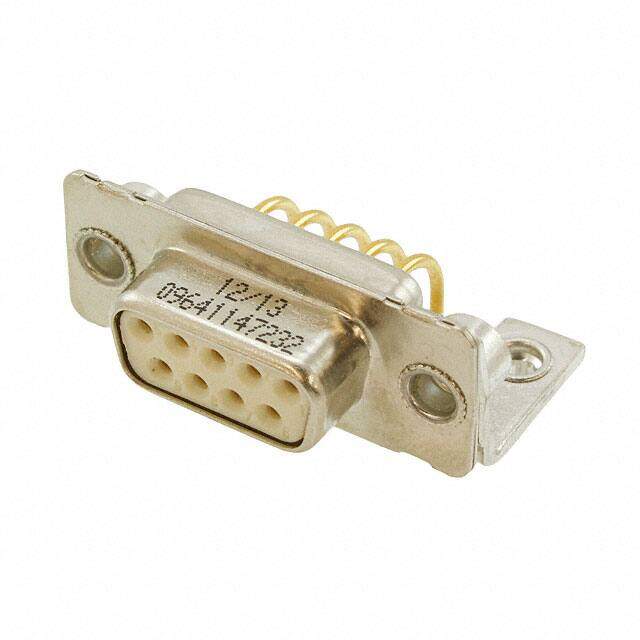

HARTING - 09641147232 - D Sub Connector, Right Angle, Filtered, Receptacle, 9 Contacts, DE, Solder
PDF
/
Buying Options
Total Price: USD $25.54
Unit Price: USD $25.5376
≥1 USD $25.5376
≥10 USD $22.3608
≥100 USD $21.394912
≥500 USD $20.70464
≥1000 USD $20.014456
≥3000 USD $18.910214
Inventory: 68
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Width 12.5mm
Length 30.8mm
Technical
Backset Spacing 0.401 (10.20mm)
Shell Size, Connector Layout 1 DE E
Contact Form Machined
Number of Ports 1
Connector Style D-Sub
Max Supply Voltage 100V
Flange Feature Housing/Shell (4-40)
Insulation Resistance 1GOhm
Contact Resistance 10mOhm
Working Voltage 100V
Empty Shell NO
Approval Agency UL
Current Rating 7.5A
Depth 21.6mm
Orientation Right Angle
Total Number of Contacts 9
Pitch 2.54mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature YES
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated DC 100V
Capacitance 1nF
Additional Feature PANEL MOUNTABLE
Gender Receptacle
Number of Rows 2
Color Natural
Number of Positions 9
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Filter, Mounting Brackets
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shell Material, Finish Steel
Body Material Metal, Plastic, Steel
Housing Material Glass
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Mounting Type Through Hole, Right Angle
Mount Board Lock, PCB, Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 19 Weeks
Alternative Model
