09641147212
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

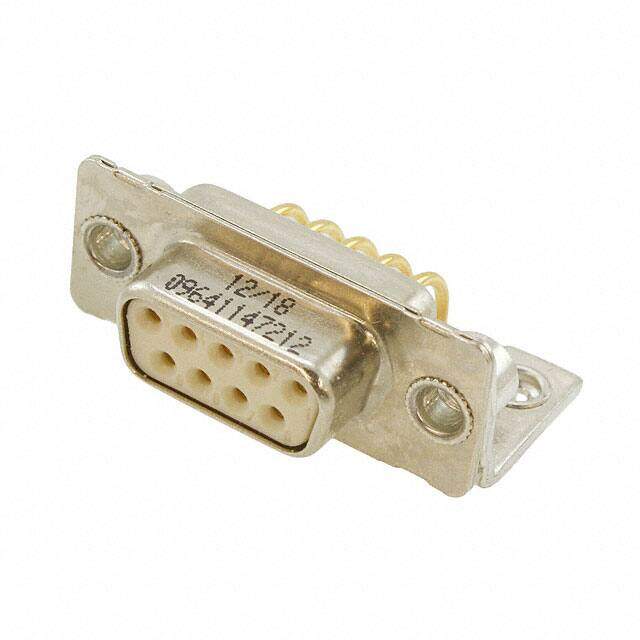

D-Sub Standard Connectors 9P FEMALE R/A BRDLCK 47 pf CLINCH NUT
PDF
/
Buying Options
Total Price: USD $16.68
Unit Price: USD $16.6848
≥1 USD $16.6848
≥10 USD $14.46192
≥100 USD $13.706528
≥500 USD $13.508
≥1000 USD $11.918808
≥3000 USD $11.124221
Inventory: 26
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Board Lock, Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Housing Material Glass
Body Material Plastic
Shell Material, Finish Steel
Technical
Operating Temperature -20°C~125°C
Packaging Bulk
Feature Board Lock, Filter, Mounting Brackets
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 9
Color Natural
Number of Rows 2
Gender Receptacle
Additional Feature PANEL MOUNTABLE
Capacitance 47pF
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature YES
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 7.5A
Total Number of Contacts 9
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Working Voltage 100V
Contact Resistance 10mOhm
Insulation Resistance 1GOhm
Flange Feature Housing/Shell (4-40)
Connector Style D-Sub
Contact Form Machined
Shell Size, Connector Layout 1 DE E
Backset Spacing 0.401 (10.20mm)
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
