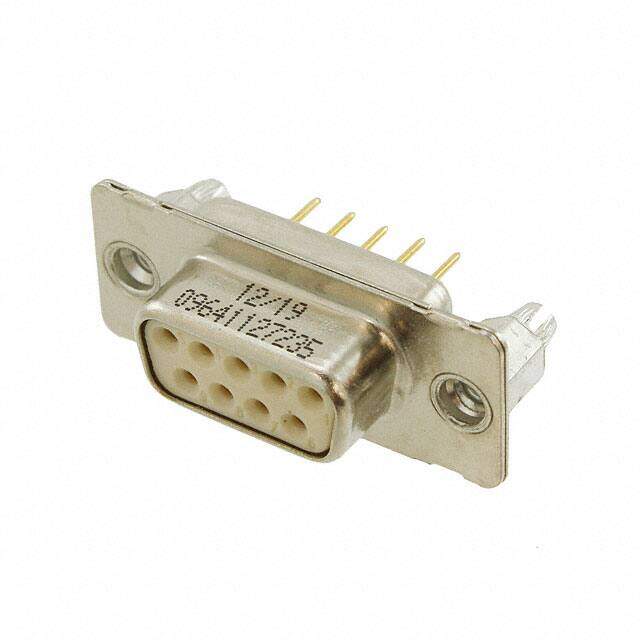

09641127235
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors 9P FEMALE STRAIGHT BOARDCLIP/CLINCH NUT
PDF
/
Buying Options
Total Price: USD $22.4
Unit Price: USD $22.396
≥1 USD $22.396
≥10 USD $19.6108
≥100 USD $18.76336
≥500 USD $18.158272
≥1000 USD $17.55292
≥3000 USD $16.58448
Inventory: 238
Minimum: 1
-
+
Technical Details
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Housing Material Glass
Shell Material, Finish Steel, Tin Plated
Technical
Operating Temperature -20°C~125°C
Packaging Bulk
Feature Board Lock, Filter
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 9
Color Natural
Number of Rows 2
Gender Female
Additional Feature PANEL MOUNTABLE
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature YES
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 9
Orientation Straight
Depth 12.5mm
Current Rating 7.5A
Shell Finish TIN
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Flange Feature Board Side (4-40)
Max Supply Voltage 100V
Connector Style D-Sub
Number of Ports 1
Contact Form Machined
Shell Size, Connector Layout 1 DE E
Dimensions
Length 30.8mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
