09641117240

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors

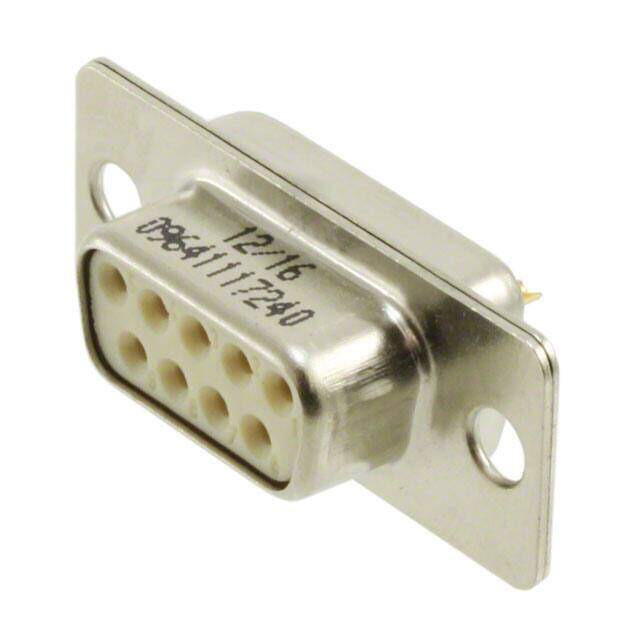

Description D Sub Connector, Filtered, Receptacle, 9 Contacts, DE, Solder Cup
PDF
/
Buying Options
Total Price: USD $22.34
Unit Price: USD $22.3432
≥1 USD $22.3432
≥10 USD $19.56768
≥100 USD $18.722176
≥500 USD $18.118144
≥1000 USD $17.514288
≥3000 USD $16.547942
Inventory: 219
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Gold
Mount Free Hanging, Through Hole
Mounting Type Free Hanging (In-Line)
Shell Material Polycyclohexylenedimethylene
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Housing Material Glass
Body Material Metal, Plastic, Steel
Shell Material, Finish Steel

Technical

Operating Temperature -55°C~125°C
Packaging Bulk
Feature Filter
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 9
Color Natural
Number of Rows 2
Gender Receptacle
Additional Feature PANEL MOUNTABLE
Capacitance 3.9nF
Voltage - Rated DC 100V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature YES
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 9
Orientation Straight
Depth 14.5mm
Current Rating 7.5A
Shell Finish TIN
Empty Shell NO
Working Voltage 100V
Contact Resistance 10mOhm
Wire Gauge 20 AWG
Insulation Resistance 1GOhm
Flange Feature Housing/Shell (Unthreaded)
Max Supply Voltage 100V
Plating Tin
Connector Style D-Sub
Number of Ports 1
Contact Form Machined
Shell Size, Connector Layout 1 DE E

Dimensions

Length 30.8mm

Compliance

Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
