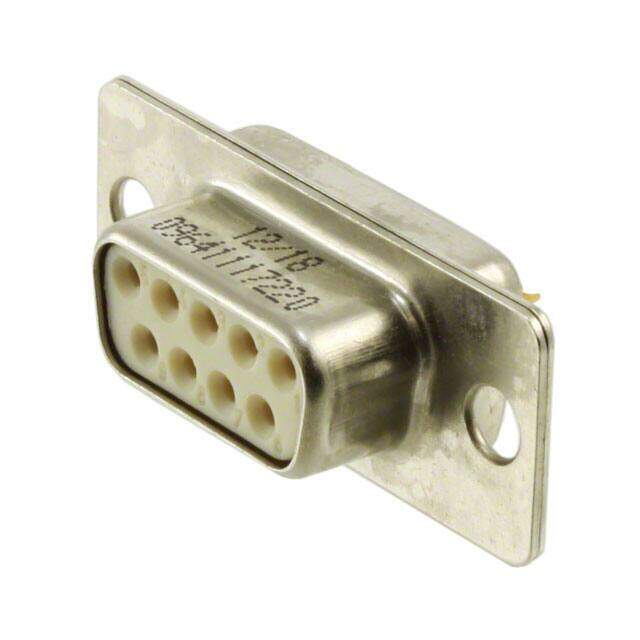

09641117220
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub Standard Connectors 9 WAY S CUP FEM
PDF
/
Buying Options
Total Price: USD $13.75
Unit Price: USD $13.7456
≥1 USD $13.7456
Inventory: 100
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Housing Material Glass
Shell Material, Finish Steel
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Feature Filter
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 9
Color Natural
Number of Rows 2
Gender Female
Voltage - Rated 100V
Additional Feature PANEL MOUNTABLE
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature YES
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 7.5A
Total Number of Contacts 9
Shell Finish TIN
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Wire Gauge 20 AWG
Flange Feature Housing/Shell (Unthreaded)
Connector Style D-Sub
Contact Form Machined
Shell Size, Connector Layout 1 DE E
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
