09565617713
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

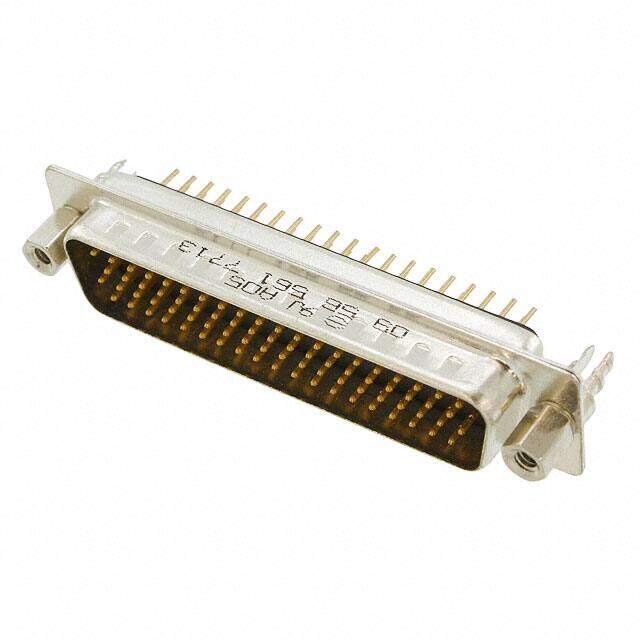

CONN D-SUB HD PLUG 78P VERT SLDR
PDF
/
Buying Options
Total Price: USD $14.35
Unit Price: USD $14.3528
≥1 USD $14.3528
≥10 USD $12.72128
≥100 USD $12.232
≥500 USD $11.742896
≥1000 USD $11.090464
≥3000 USD $10.111869
Inventory: 112
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Feature Board Lock, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 78
Color Black
Number of Rows 4
Gender Male
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 1.21mm
Total Number of Contacts 78
Current Rating 2A
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Flange Feature Mating Side, Female Screwlock (4-40)
Connector Style D-Sub, High Density
Contact Form Stamped
Shell Size, Connector Layout 5 DD D High Density
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
