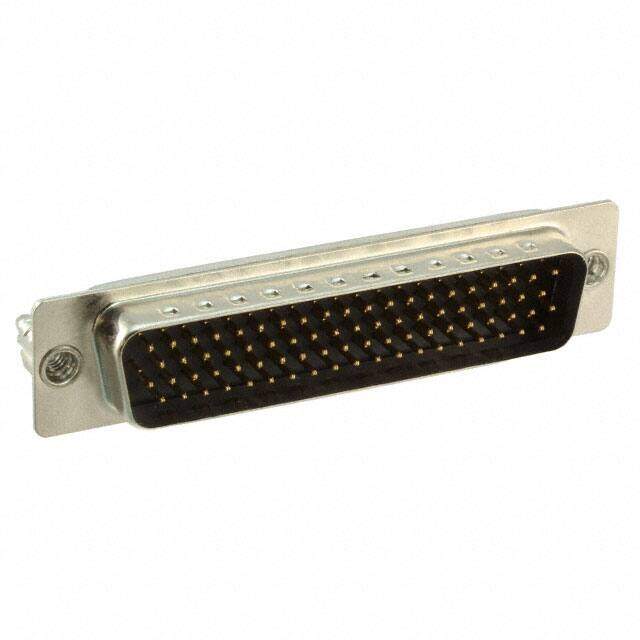

09565617712
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
Conn High Density D-Sub M 78 POS 2.41mm Solder ST Thru-Hole 78 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $13.75
Unit Price: USD $13.7456
≥1 USD $13.7456
≥10 USD $12.18448
≥100 USD $11.715616
≥500 USD $11.246928
≥1000 USD $10.62204
≥3000 USD $9.684822
Inventory: 31
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Shell Material Steel
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Feature Board Lock, Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 78
Number of Rows 4
Gender Male
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 78
Orientation Straight
Depth 15.75mm
Current Rating 2A
Empty Shell NO
Flange Feature Board Side (4-40)
Plating Tin
Connector Style D-Sub, High Density
Number of Ports 1
Contact Form Stamped
Shell Size, Connector Layout 5 DD D High Density
Dimensions
Length 67.3mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
