09565617700

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors

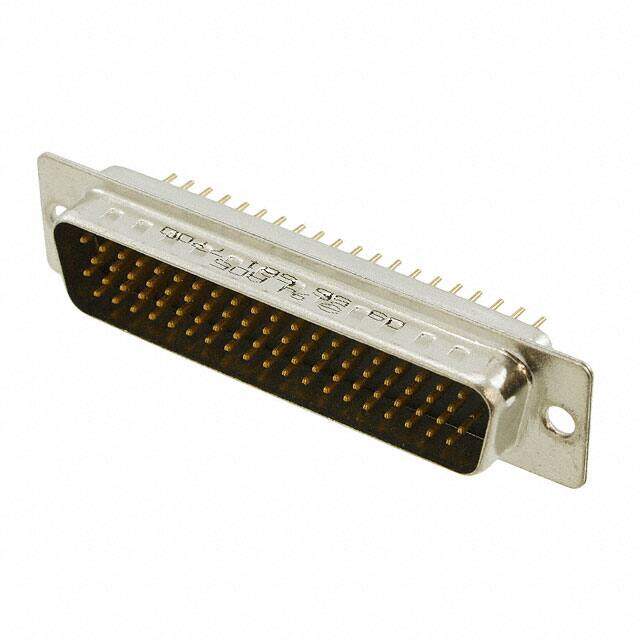

Description CONN D-SUB HD PLUG 78P VERT SLDR
PDF
/
Buying Options
Total Price: USD $13.12
Unit Price: USD $13.1208
≥1 USD $13.1208
≥10 USD $11.6292
≥100 USD $11.182336
≥500 USD $10.734944
≥1000 USD $10.138568
≥3000 USD $9.243978
Inventory: 102
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 10.74mm
Length 67mm

Technical

Shell Size, Connector Layout 5 DD D High Density
Contact Form Stamped
Connector Style D-Sub, High Density
Plating Tin
Flange Feature Housing/Shell (Unthreaded)
Empty Shell NO
Current Rating 2A
Depth 15.35mm
Orientation Straight
Total Number of Contacts 78
Pitch 2.41mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Gender Male
Number of Rows 4
Color Black
Number of Positions 78
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Shell Material, Finish Steel, Nickel Plated
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Shell Material Steel
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 9 Weeks
