HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors

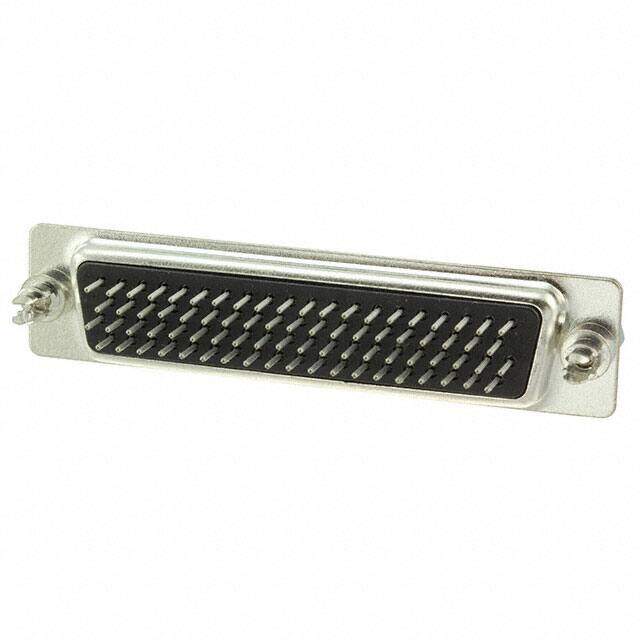

Description CONN D-SUB HD PLUG 78P VERT SLDR
PDF
/
Buying Options
Total Price: USD $17.17
Unit Price: USD $17.1688
≥1 USD $17.1688
≥10 USD $14.88168
≥100 USD $14.105344
≥500 USD $13.900832
≥1000 USD $12.26544
≥3000 USD $11.447744
Inventory: 214
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness 30.0μin 0.76μm
Length 67.3mm
Height 15.35mm

Technical

Test Voltage 1kV
Shell Size, Connector Layout 5 DD D High Density
Contact Form Stamped
Number of Ports 1
Connector Style D-Sub, High Density
Flange Feature Mating Side, Female Screwlock (4-40)
Empty Shell NO
Contact Gender Male
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Finish Gold or Gold-Palladium
Current Rating 2A
Depth 15.75mm
Orientation Straight
Total Number of Contacts 78
Pitch 2.41mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Number of Rows 4
Number of Positions 78
Connector Type Plug, Male Pins
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Grounding Indents
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Shell Material, Finish Steel, Nickel Plated
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 10 Weeks
