09565527612
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

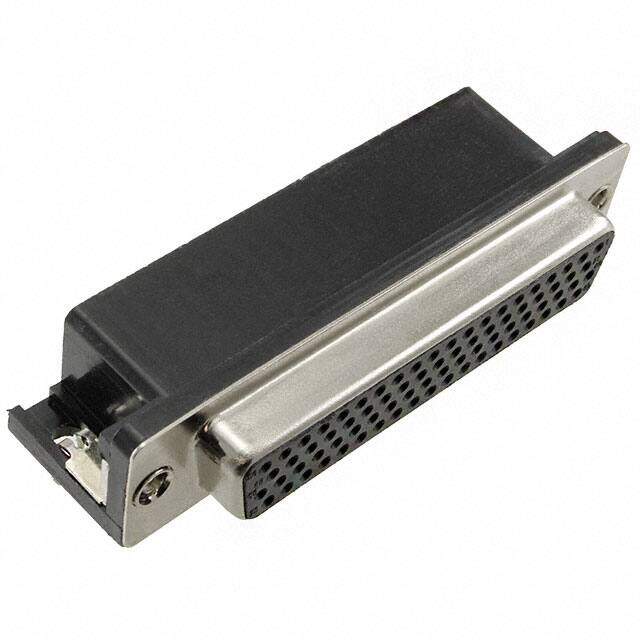

D-Sub High Density Connectors 78P FEMALE R/A PCB 4-40 UNC PL3 PLATING
PDF
/
Buying Options
Total Price: USD $19.96
Unit Price: USD $19.9584
≥1 USD $19.9584
≥10 USD $17.47944
≥100 USD $16.724576
≥500 USD $16.18496
≥1000 USD $15.64552
≥3000 USD $14.782346
Inventory: 212
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Shell Material Steel
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 78
Number of Rows 4
Gender Receptacle
Subcategory D Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 78
Current Rating 2A
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 2.638 inch
Number Of PCB Rows 4
PCB Contact Pattern STAGGERED
Body Breadth 0.605 inch
Empty Shell NO
Body Depth 0.689 inch
Rated Current (Signal) 2A
Contact Resistance 25mOhm
Insulation Resistance 5000000000Ohm
Flange Feature Housing/Shell (4-40)
Mating Contact Pitch 0.095 inch
Plating Tin
Connector Style D-Sub, High Density
Mating Contact Row Spacing 0.082 inch
Contact Form Stamped
Shell Size, Connector Layout 5 DD D High Density
Backset Spacing 0.350 (8.89mm)
Dimensions
Length - Termination 0.126 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
