Category Connectors, Interconnects / D-Sub Connectors
Description

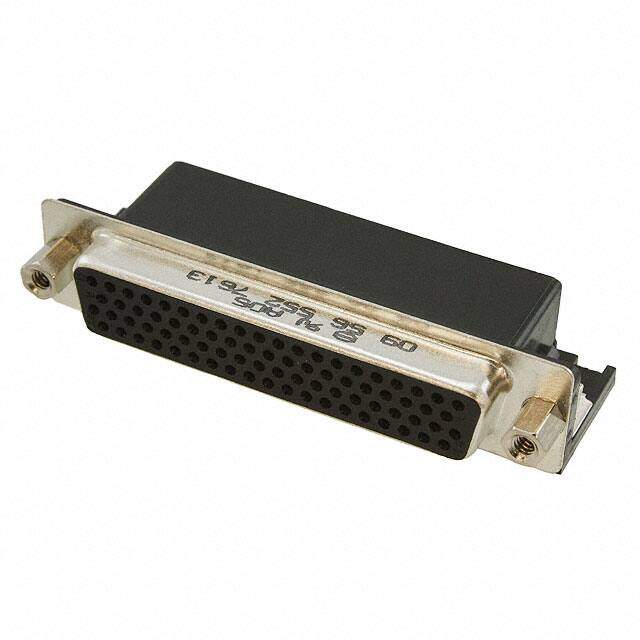

Conn High Density D-Sub SKT 78 POS 2.41mm Solder RA Thru-Hole 78 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $26.5
Unit Price: USD $26.4968
≥1 USD $26.4968
≥10 USD $23.2056
≥100 USD $22.202752
≥500 USD $21.486608
≥1000 USD $20.770376
≥3000 USD $19.624422
Inventory: 154
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material Polybutylene
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Feature Board Lock
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 78
Number of Rows 4
Gender Female
Subcategory D Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2A
Pitch 2.41mm
Total Number of Contacts 78
Orientation Right Angle
Depth 24.1mm
Reference Standard UL
Contact Finish Gold or Gold-Palladium
Reliability COMMERCIAL
Number Of PCB Rows 4
PCB Contact Pattern STAGGERED
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.605 inch
Empty Shell NO
Contact Resistance 25mOhm
Insulation Resistance 5000000000Ohm
Flange Feature Mating Side, Female Screwlock (4-40)
Connector Style D-Sub, High Density
Number of Ports 1
Mating Contact Row Spacing 0.082 inch
Contact Form Stamped
Shell Size, Connector Layout 5 DD D High Density
Backset Spacing 0.350 (8.89mm)
Dimensions
Height 15.35mm
Length 67.4mm
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 30μin
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
