09565517500
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description

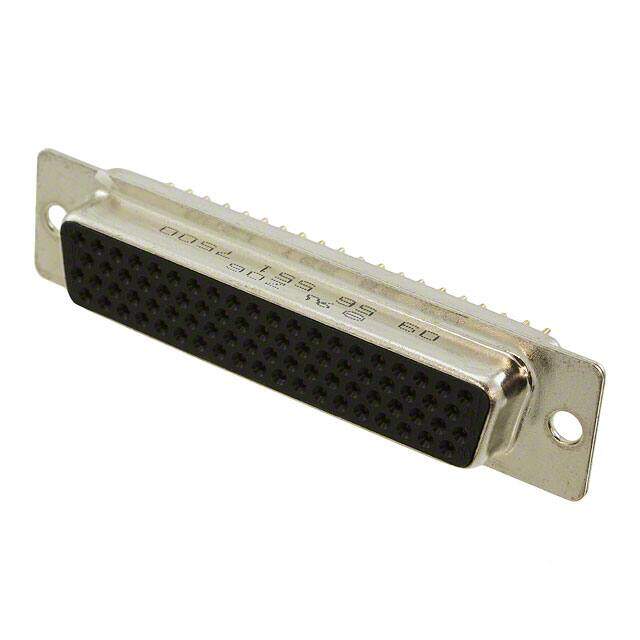

CONN D-SUB HD RCPT 78P VERT SLDR
PDF
/
Buying Options
Total Price: USD $14.38
Unit Price: USD $14.3792
≥1 USD $14.3792
≥10 USD $12.46168
≥100 USD $11.811712
≥500 USD $11.640464
≥1000 USD $10.271008
≥3000 USD $9.586227
Inventory: 219
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Shell Material Steel
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle, Female Sockets
Number of Positions 78
Color Black
Number of Rows 4
Gender Receptacle
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.41mm
Total Number of Contacts 78
Orientation Straight
Depth 15.35mm
Current Rating 2A
Empty Shell NO
Flange Feature Housing/Shell (Unthreaded)
Plating Tin
Connector Style D-Sub, High Density
Contact Form Stamped
Shell Size, Connector Layout 5 DD D High Density
Dimensions
Length 67mm
Width 10.74mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
