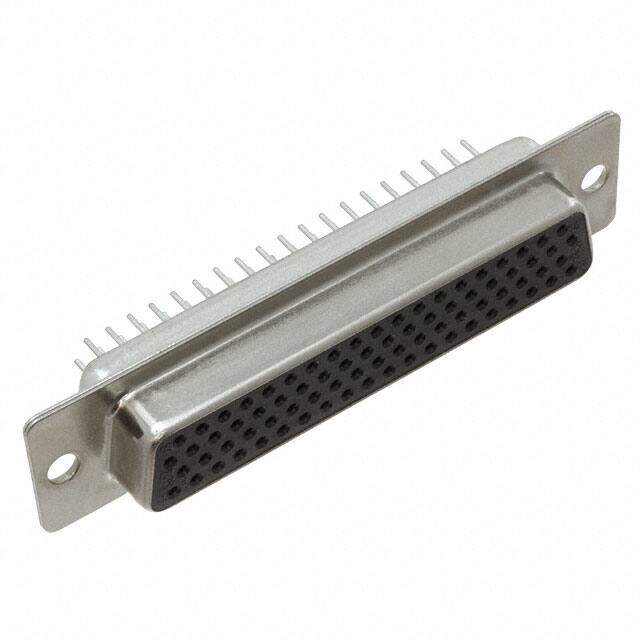

09565515500
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB HD PLUG 78POS STR
PDF
/
Buying Options
Total Price: USD $18.1
Unit Price: USD $18.1016
≥1 USD $18.1016
≥10 USD $15.8532
≥100 USD $15.16768
≥500 USD $14.678576
≥1000 USD $14.189208
≥3000 USD $13.406378
Inventory: 136
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Width 15.35mm
Length 67mm
Height 15.35mm
Technical
Shell Size, Connector Layout 5 DD D High Density
Contact Form Stamped
Connector Style D-Sub, High Density
Plating Tin
Flange Feature Housing/Shell (Unthreaded)
Empty Shell NO
Contact Gender Female
Contact Finish Gold or Gold-Palladium
Current Rating 2A
Depth 15.9mm
Orientation Straight
Total Number of Contacts 78
Pitch 2.41mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Number of Rows 4
Color Black
Number of Positions 78
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Shell Material, Finish Steel, Nickel Plated
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Shell Material Steel
Mounting Type Free Hanging (In-Line)
Mount Free Hanging, Panel
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
