HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors

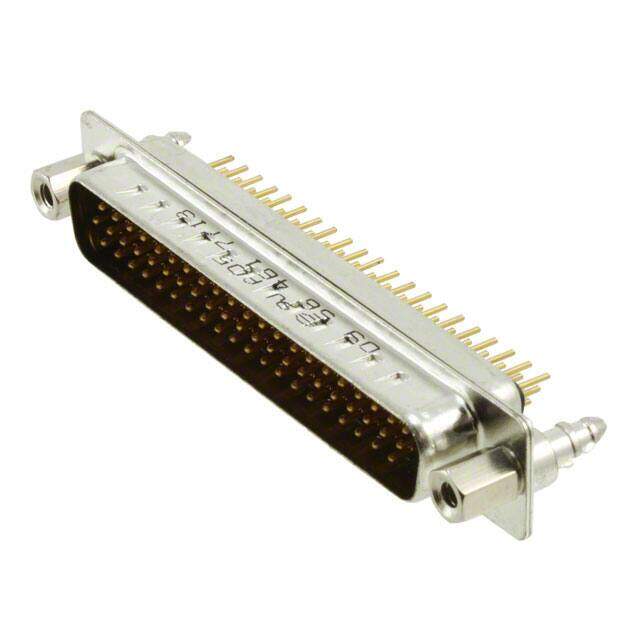

Description D-Sub High Density Connectors D SUB HD MA STR 62P S4_4-40 NUT
PDF
/
Inventory: 5626
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness 30.0μin 0.76μm

Technical

Shell Size, Connector Layout 4 DC C High Density
Contact Form Stamped
Connector Style D-Sub, High Density
Flange Feature Mating Side, Female Screwlock (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Contact Gender Male
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Finish Gold or Gold-Palladium
Current Rating 2A
Total Number of Contacts 62
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Number of Rows 3
Number of Positions 62
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Grounding Indents
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Shell Material, Finish Steel, Nickel Plated
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 4 Weeks
