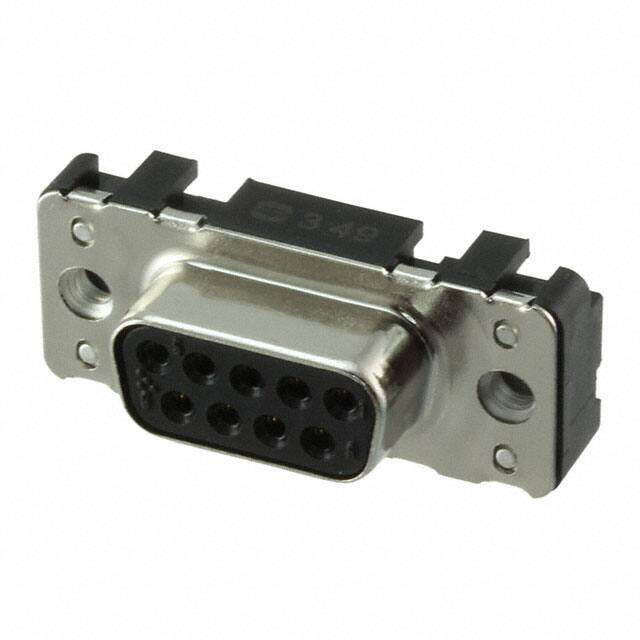

09564615712
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN D-SUB HD PLUG 62P VERT SLDR
PDF
/
Buying Options
Total Price: USD $12.94
Unit Price: USD $12.9448
≥1 USD $12.9448
≥10 USD $11.47344
≥100 USD $11.032384
≥500 USD $10.590976
≥1000 USD $10.00252
≥3000 USD $9.119968
Inventory: 110
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Technical
Shell Size, Connector Layout 4 DC C High Density
Contact Form Stamped
Connector Style D-Sub, High Density
Plating Tin
Flange Feature Board Side (4-40)
Empty Shell NO
UL Flammability Code 94V-0
Contact Finish Gold or Gold-Palladium
Current Rating 2A
Total Number of Contacts 62
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Gender Male
Number of Rows 3
Number of Positions 62
Connector Type Plug, Male Pins
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Grounding Indents
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Shell Material, Finish Steel, Nickel Plated
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Shell Material Steel
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
