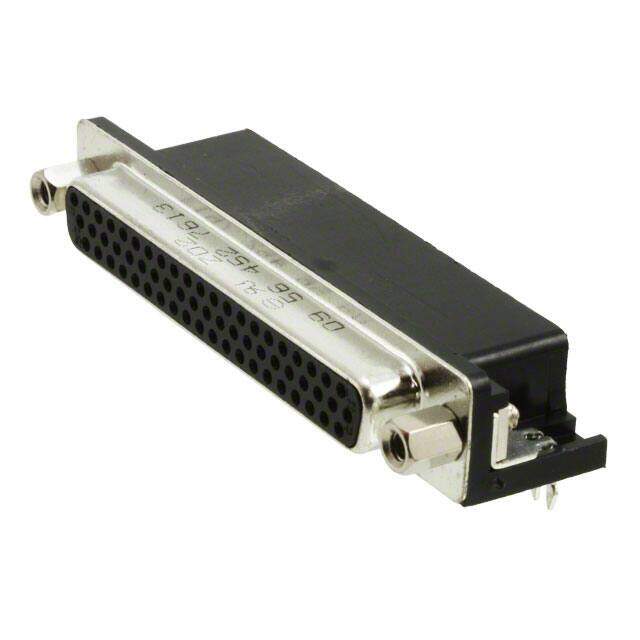

09564527613
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
CONN DSUB HD RCPT 62POS R/A SLDR
PDF
/
Buying Options
Total Price: USD $12.14
Unit Price: USD $12.1352
≥1 USD $12.1352
≥10 USD $10.7536
≥100 USD $10.339648
≥500 USD $9.926048
≥1000 USD $9.37464
≥3000 USD $8.54744
Inventory: 598
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 12.93mm
Length 69.8mm
Height 12.55mm
Technical
Backset Spacing 0.350 (8.89mm)
Shell Size, Connector Layout 4 DC C High Density
Contact Form Stamped
Mating Contact Row Spacing 0.078 inch
PCB Contact Row Spacing 2.54 mm
Connector Style D-Sub, High Density
Flange Feature Mating Side, Female Screwlock (4-40)
Insulation Resistance 5000000000Ohm
Contact Resistance 25mOhm
Rated Current (Signal) 2A
Empty Shell NO
UL Flammability Code 94V-0
Body Breadth 0.509 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern STAGGERED
Number Of PCB Rows 3
Reliability COMMERCIAL
Reference Standard UL
Current Rating 2A
Depth 22.3mm
Orientation Right Angle
Total Number of Contacts 62
Pitch 2.41mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Subcategory D Type Connectors
Gender Female
Number of Rows 3
Color Black
Number of Positions 62
Connector Type Receptacle, Female Sockets
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Shell Material, Finish Steel, Nickel Plated
Housing Material PBT
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
