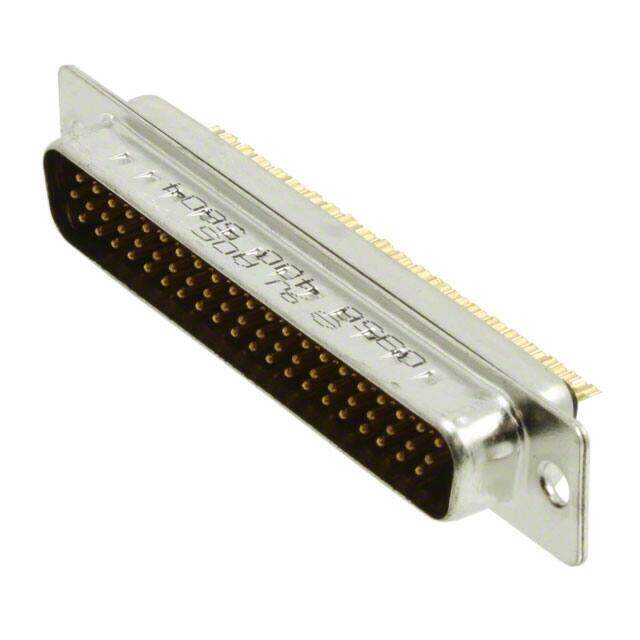

09564005604 image
Favorite
09564005604 image
Favorite

09564005604

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / D-Sub Connectors
Description D-Sub High Density Connectors D SUB HD MA 62P PL3 SOLDER CUP
PDF
/
Buying Options
Total Price: USD $8.31
Unit Price: USD $8.3072
≥1 USD $8.3072
≥10 USD $7.47912
≥100 USD $7.045632
≥500 USD $6.86488
≥1000 USD $6.684304
≥3000 USD $5.961648
Inventory: 123
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Width 12.55mm
Length 69.4mm

Technical

Shell Size, Connector Layout 4 DC C High Density
Contact Form Stamped
Number of Ports 1
Connector Style D-Sub, High Density
Plating Tin
Flange Feature Housing/Shell (Unthreaded)
Empty Shell NO
UL Flammability Code 94V-0
Current Rating 2A
Orientation Straight
Total Number of Contacts 62
Pitch 2.42mm
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Signal
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Gender Male
Number of Rows 3
Color Black
Number of Positions 62
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Grounding Indents
Packaging Tray
Operating Temperature -40°C~85°C

Physical

Shell Material, Finish Steel, Nickel Plated
Housing Material Steel
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 9 Weeks
