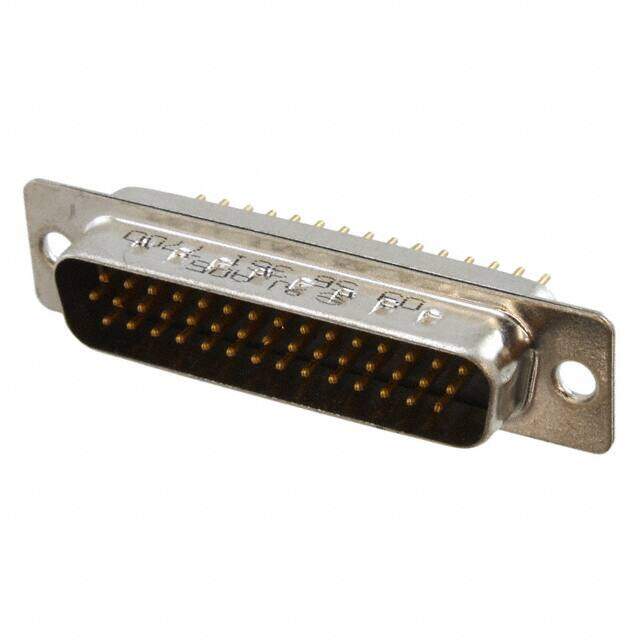

09563617700
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / D-Sub Connectors
Description
D-Sub High Density Series; 44 Way Mount PCB D-sub Conn Plug; 2.29mm Pitch
PDF
/
Buying Options
Total Price: USD $7.28
Unit Price: USD $7.2776
≥1 USD $7.2776
≥10 USD $6.57712
≥100 USD $6.213152
≥500 USD $5.758544
≥1000 USD $5.152374
≥3000 USD $4.849293
Inventory: 67
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Shell Material Steel
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Housing Material PBT
Shell Material, Finish Steel, Nickel Plated
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Feature Grounding Indents
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug, Male Pins
Number of Positions 44
Color Black
Number of Rows 3
Gender Male
Additional Feature PANEL MOUNTABLE
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Signal
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.29mm
Total Number of Contacts 44
Orientation Straight
Depth 12.55mm
Current Rating 2A
UL Flammability Code 94V-0
Empty Shell NO
Flange Feature Housing/Shell (Unthreaded)
Plating Tin
Connector Style D-Sub, High Density
Contact Form Stamped
Shell Size, Connector Layout 3 DB B High Density
Dimensions
Length 53.05mm
Width 10.74mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
